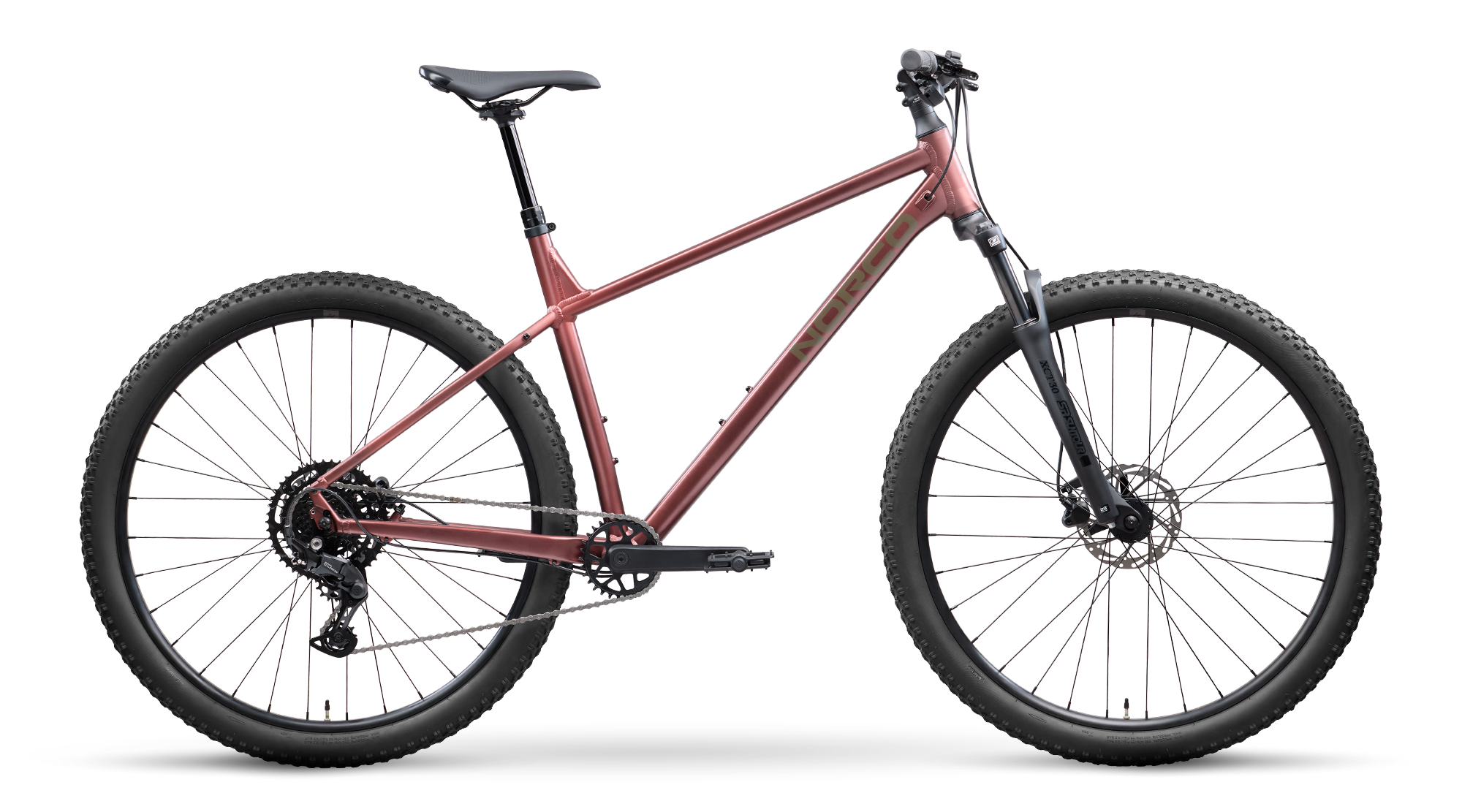

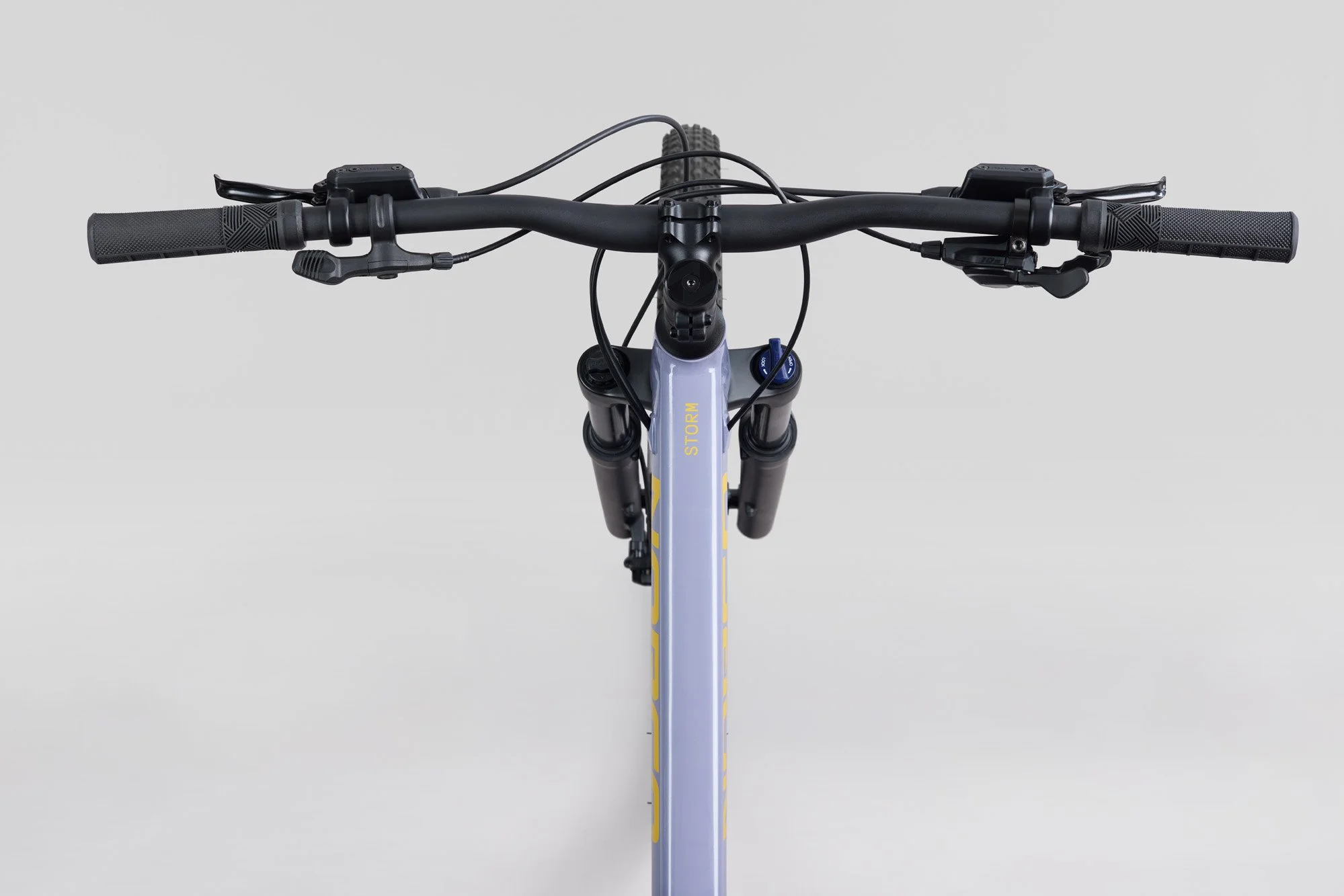

Image 1 of 8

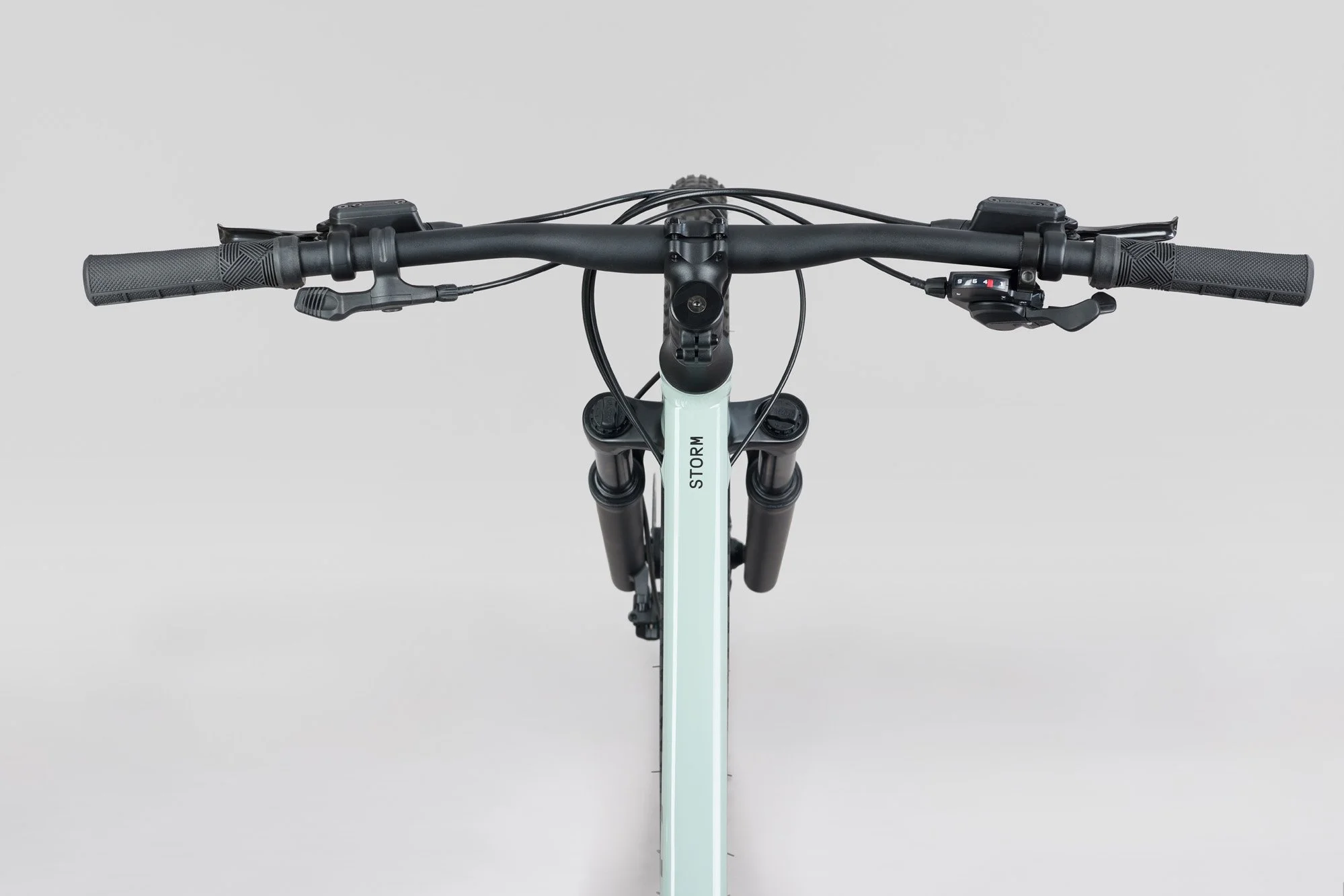

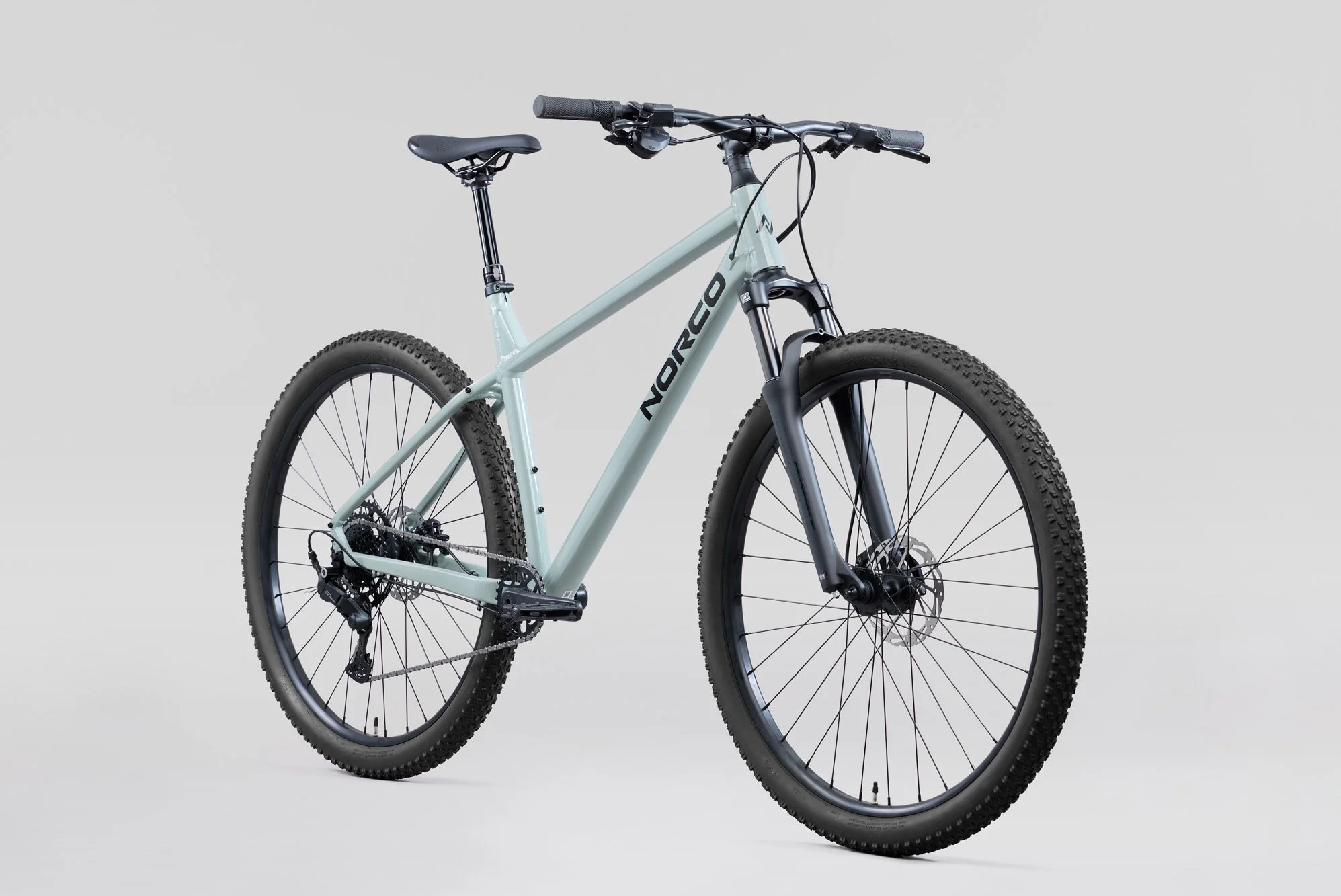

Image 2 of 8

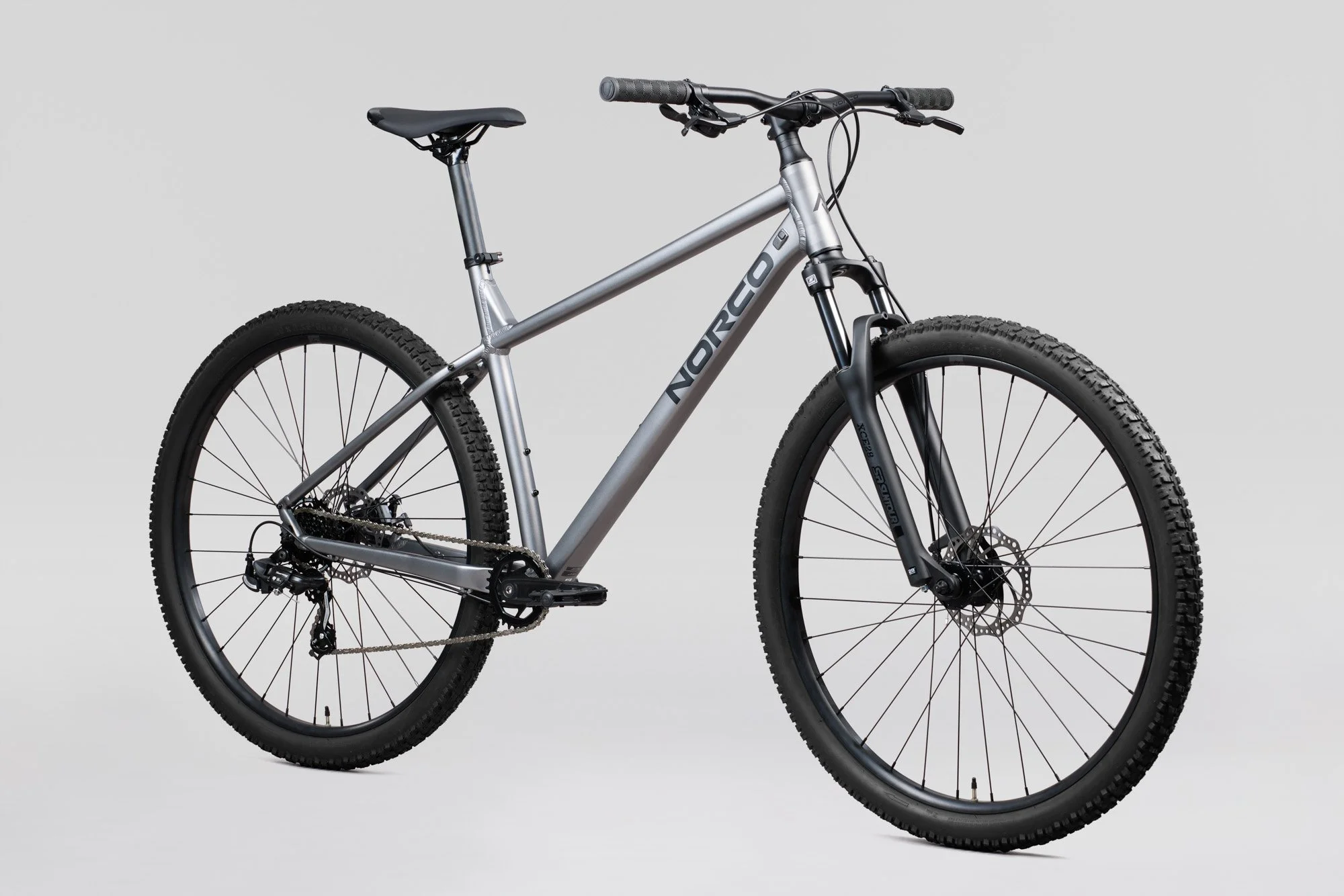

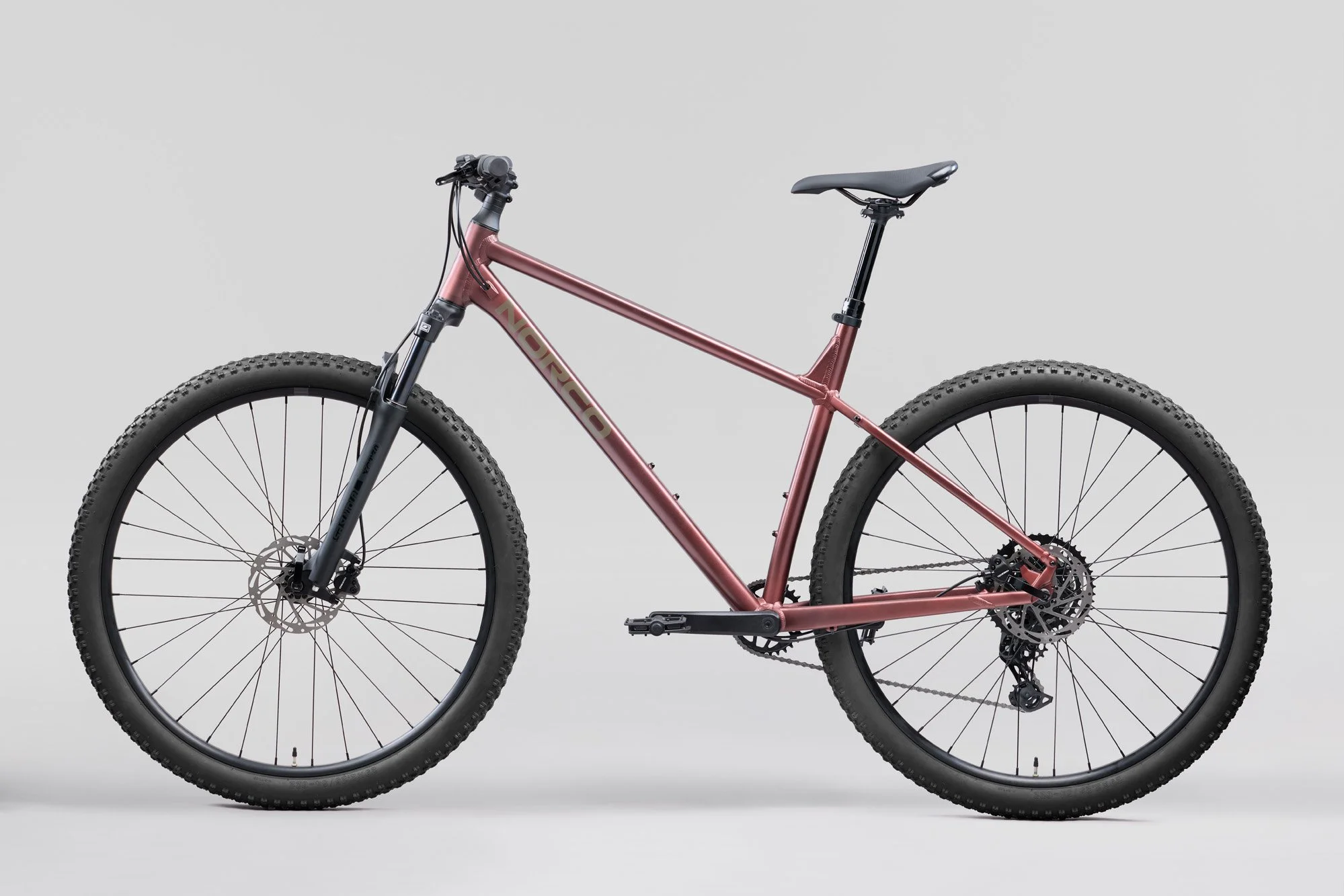

Image 3 of 8

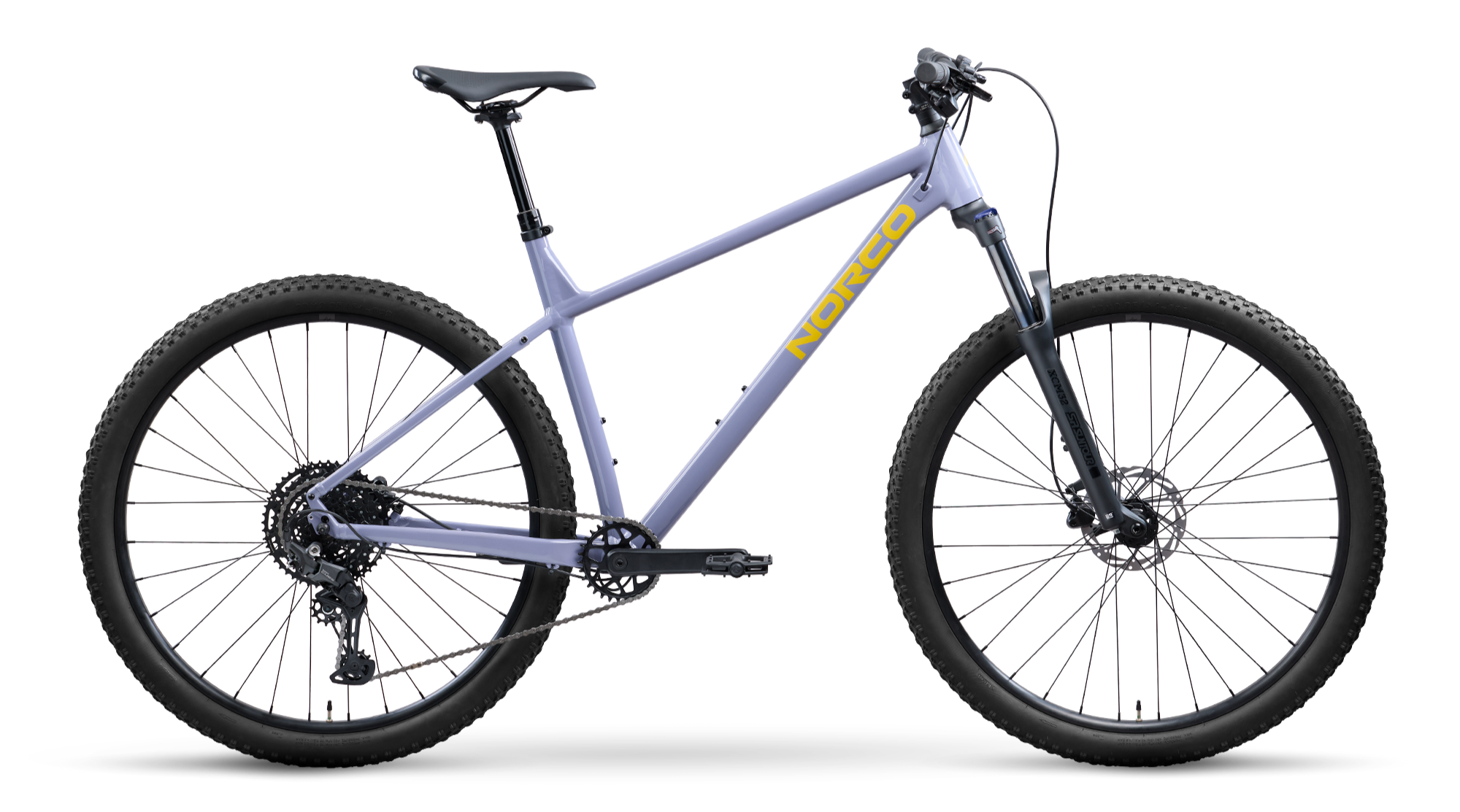

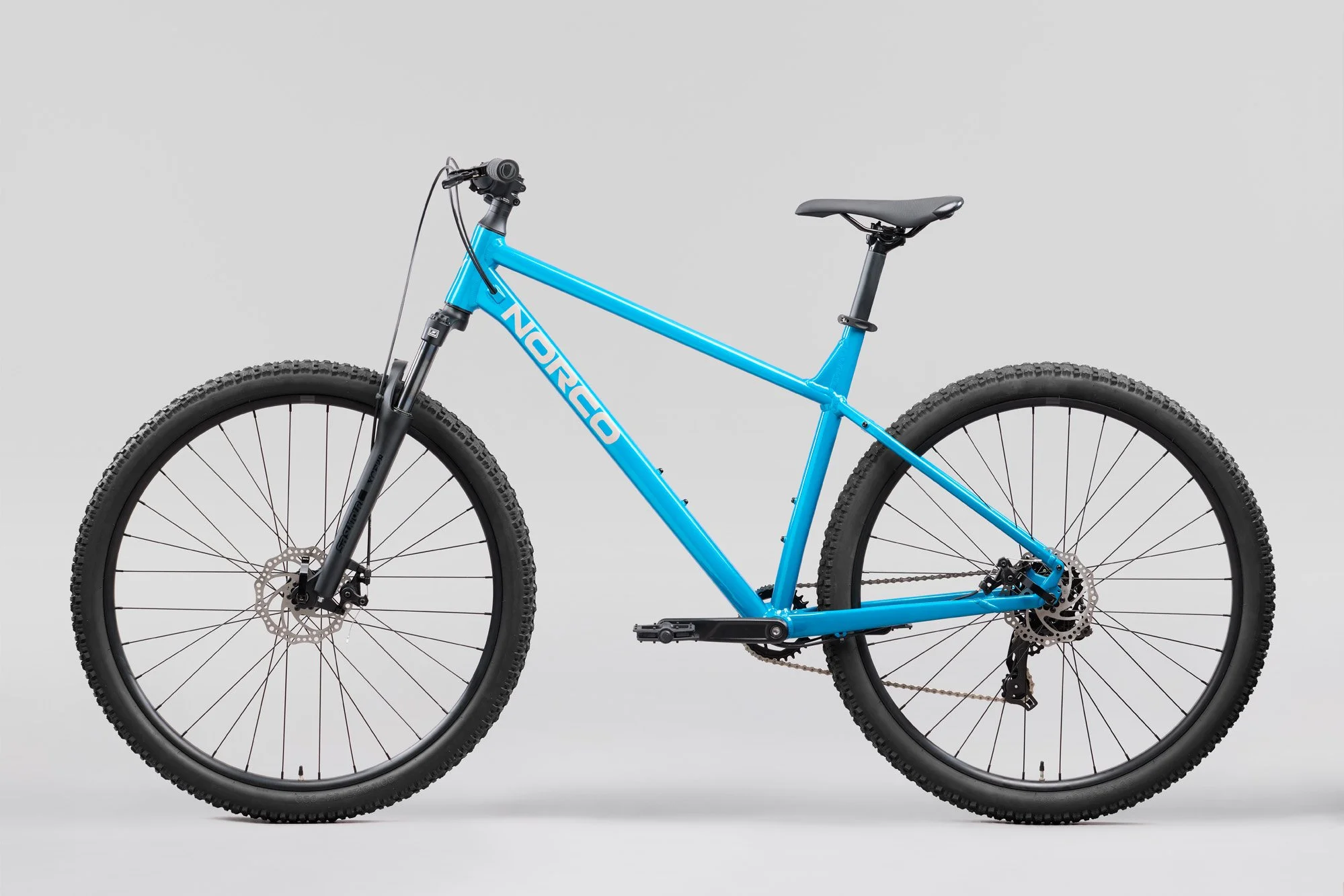

Image 4 of 8

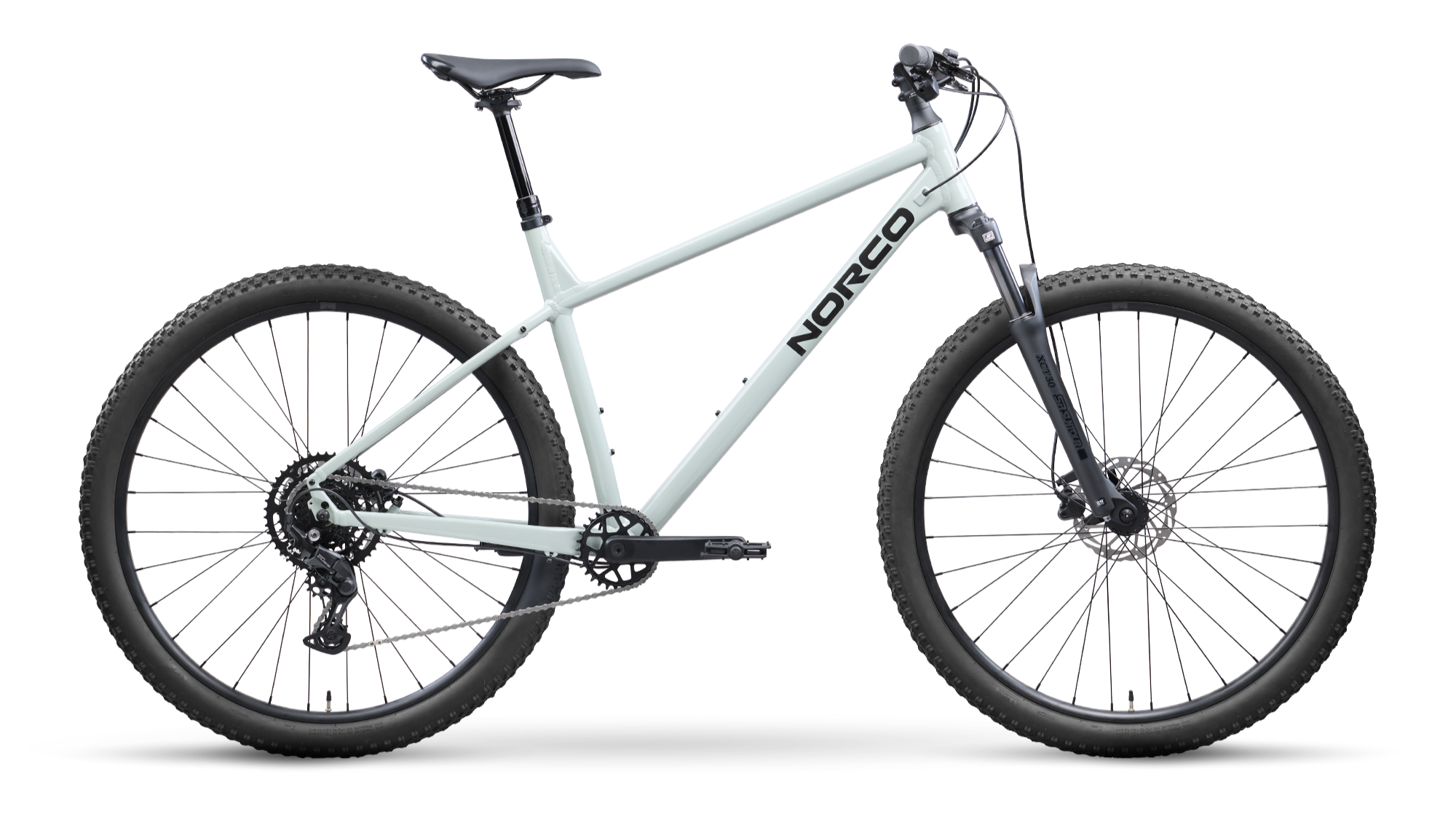

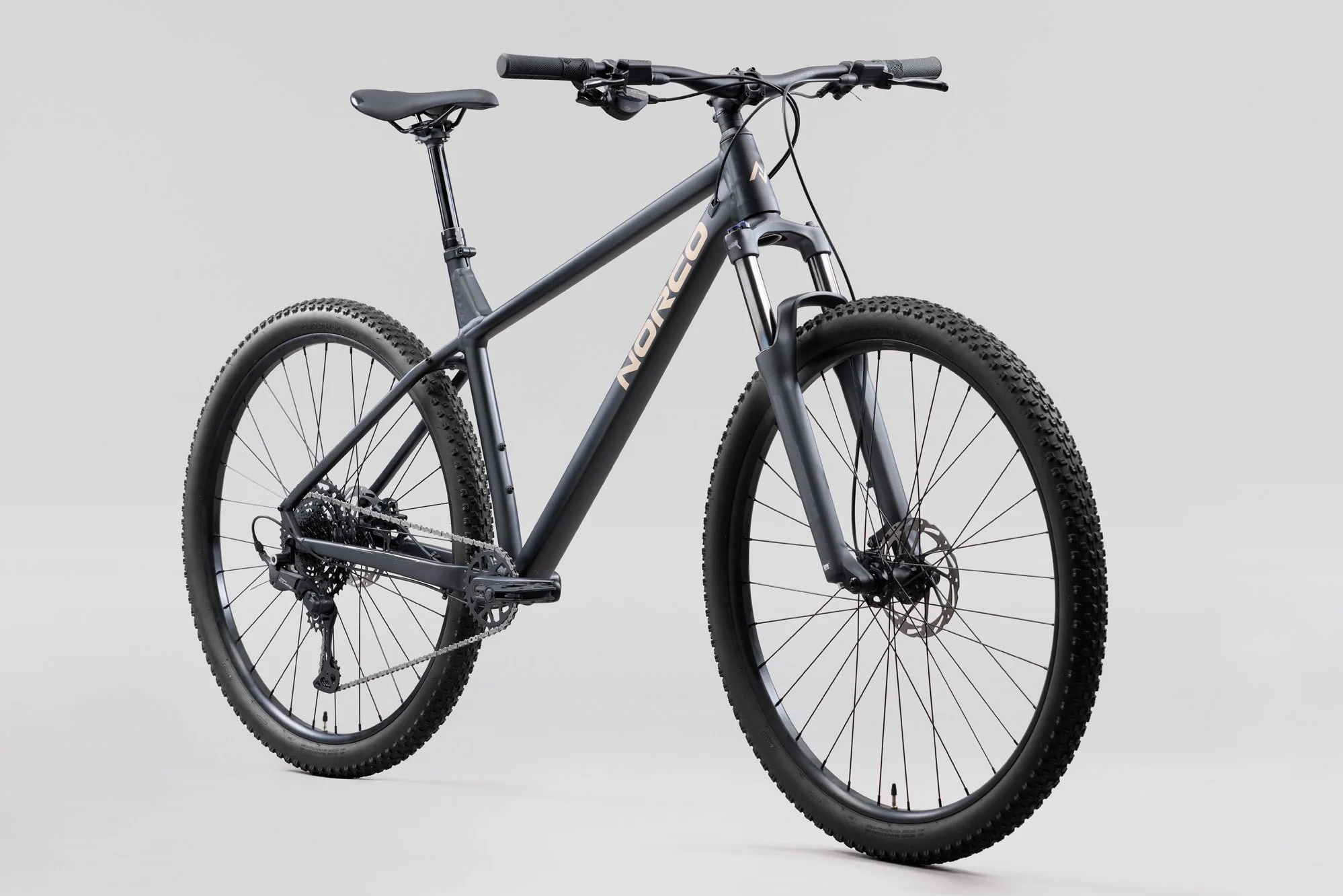

Image 5 of 8

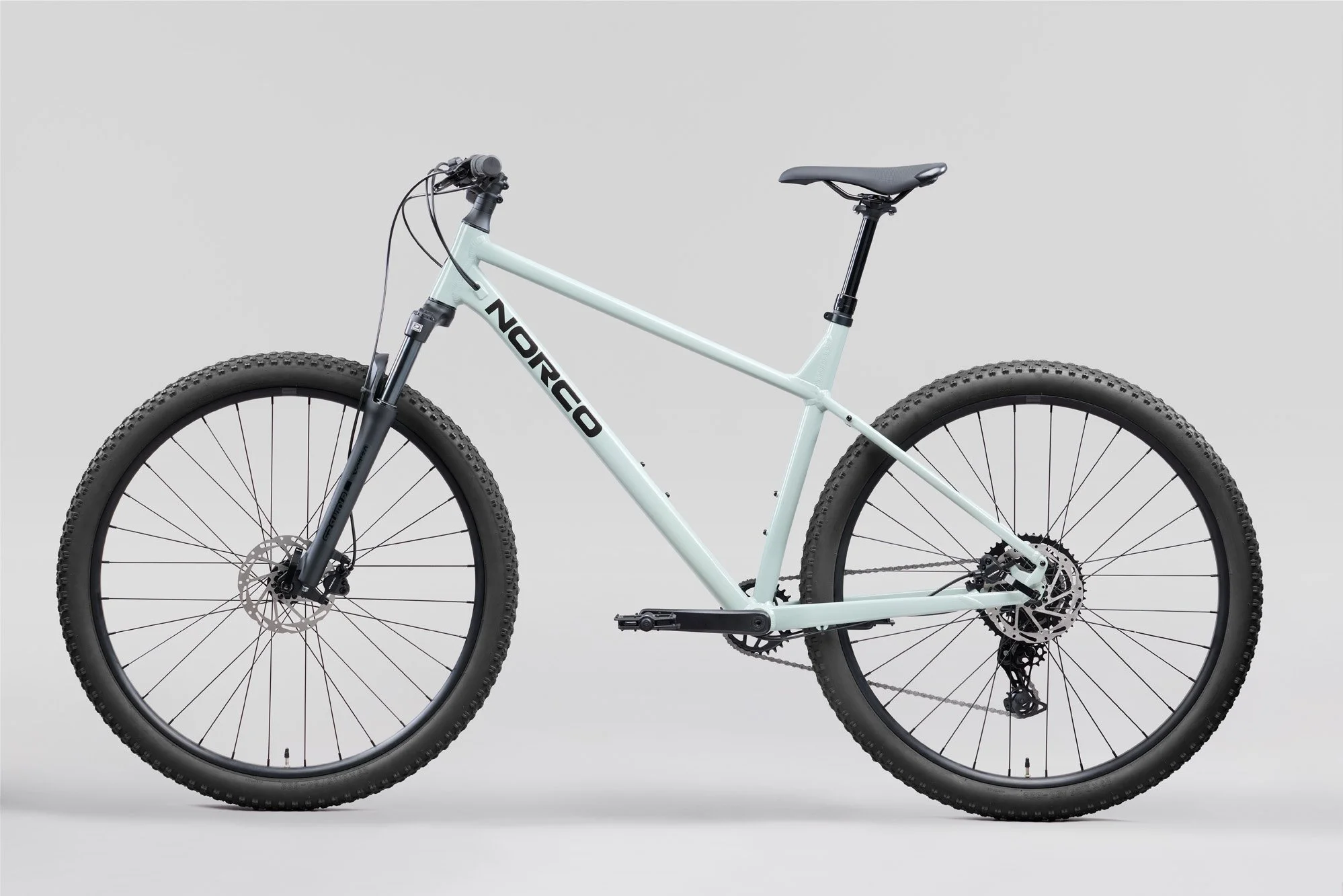

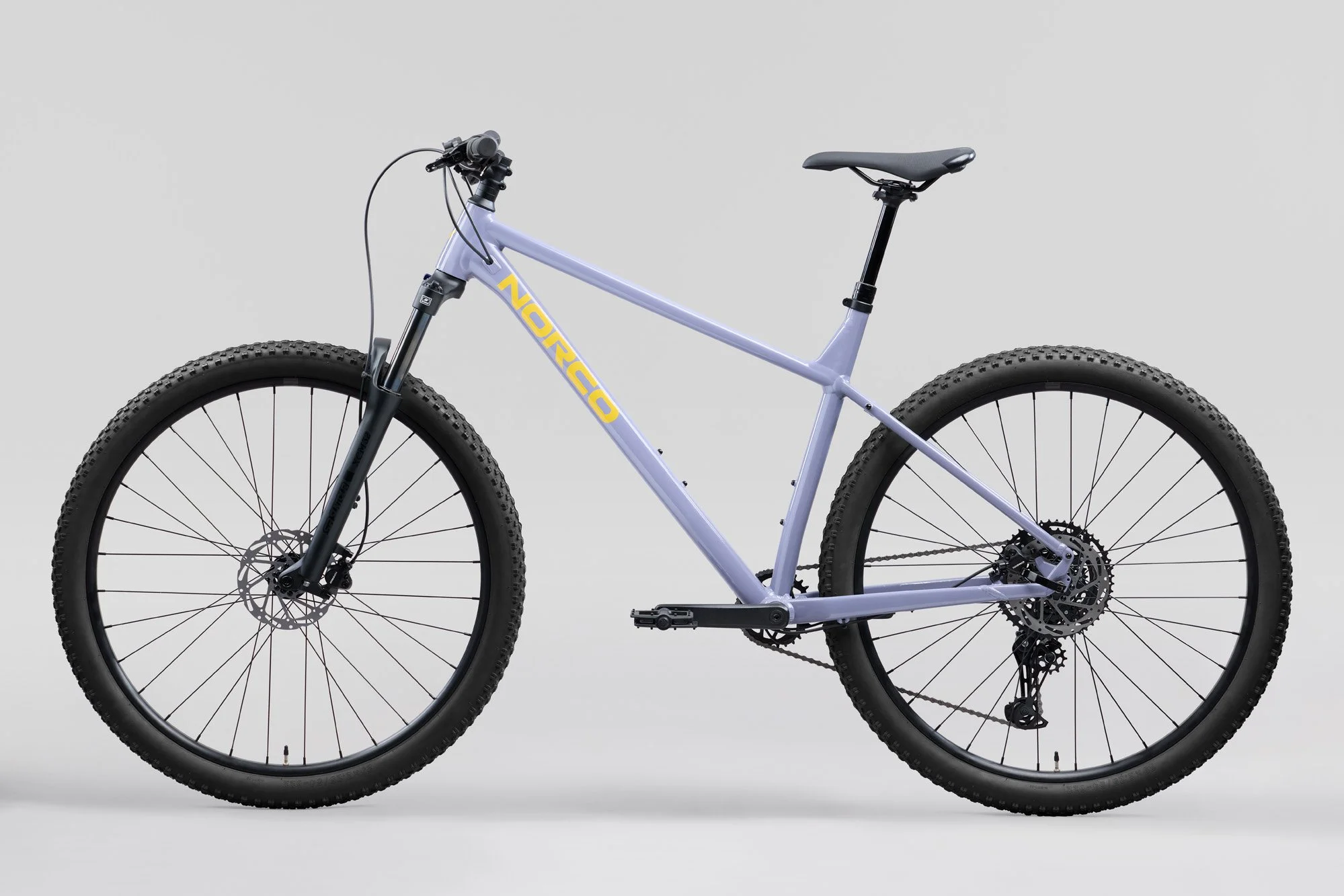

Image 6 of 8

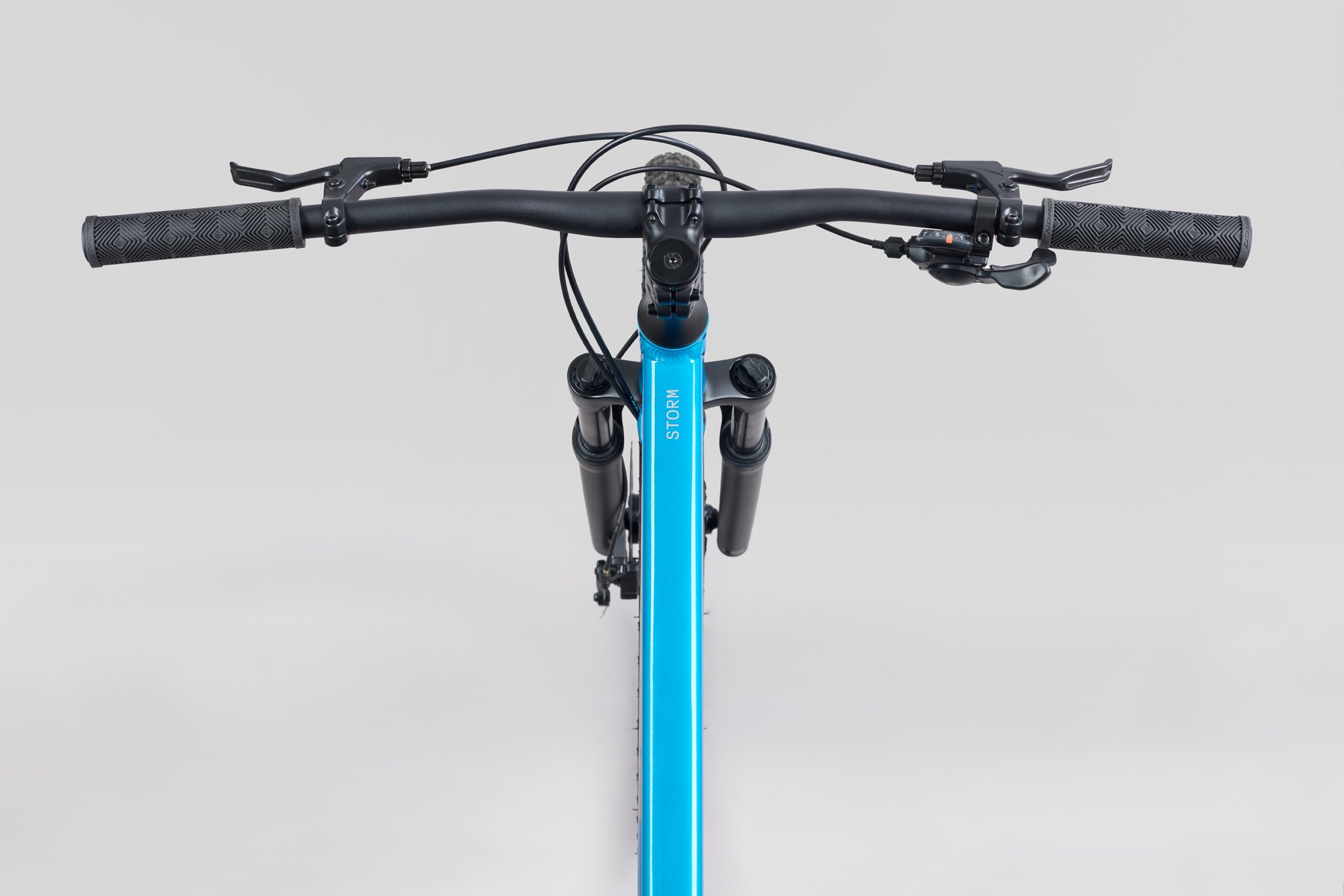

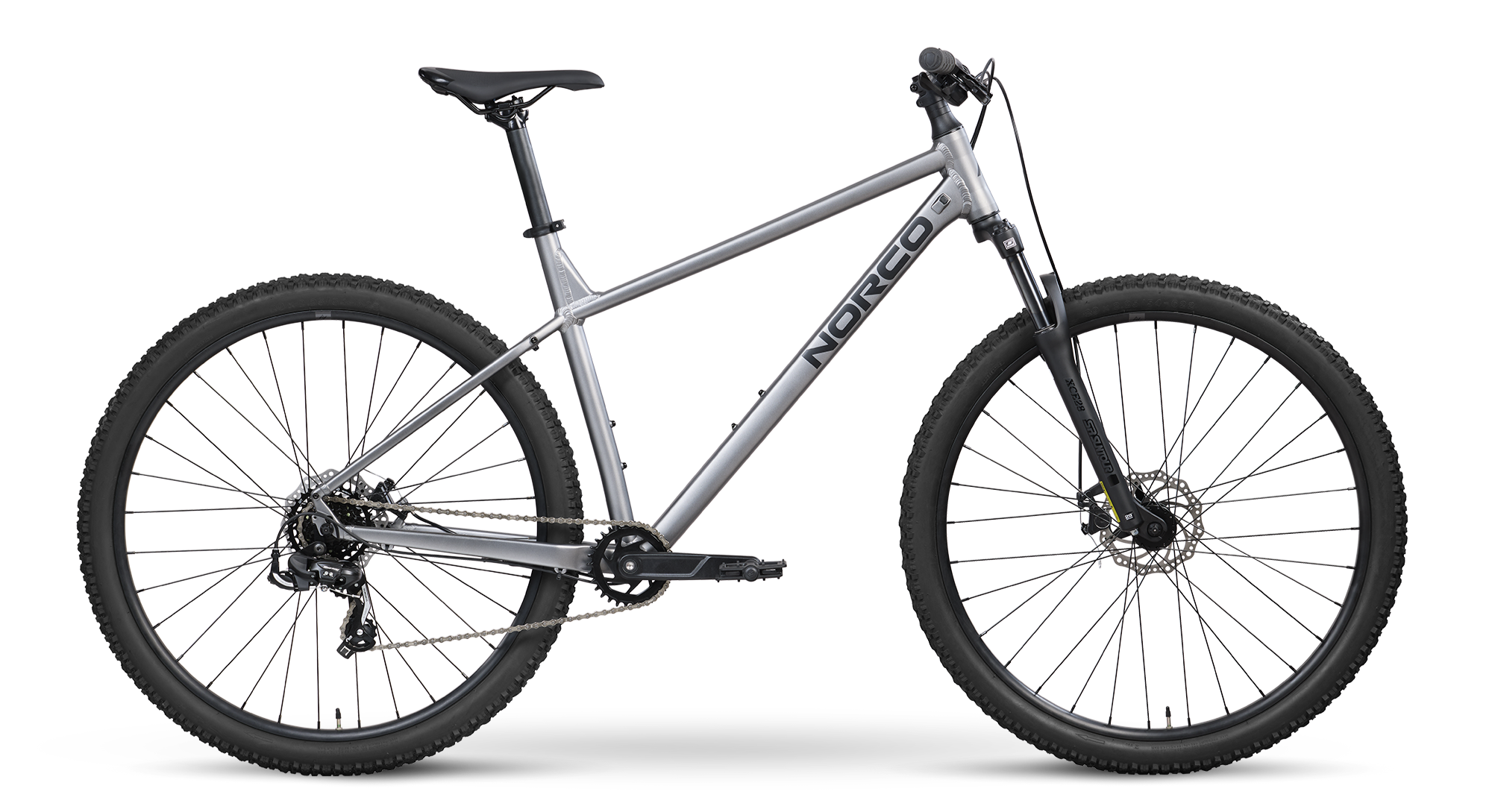

Image 7 of 8

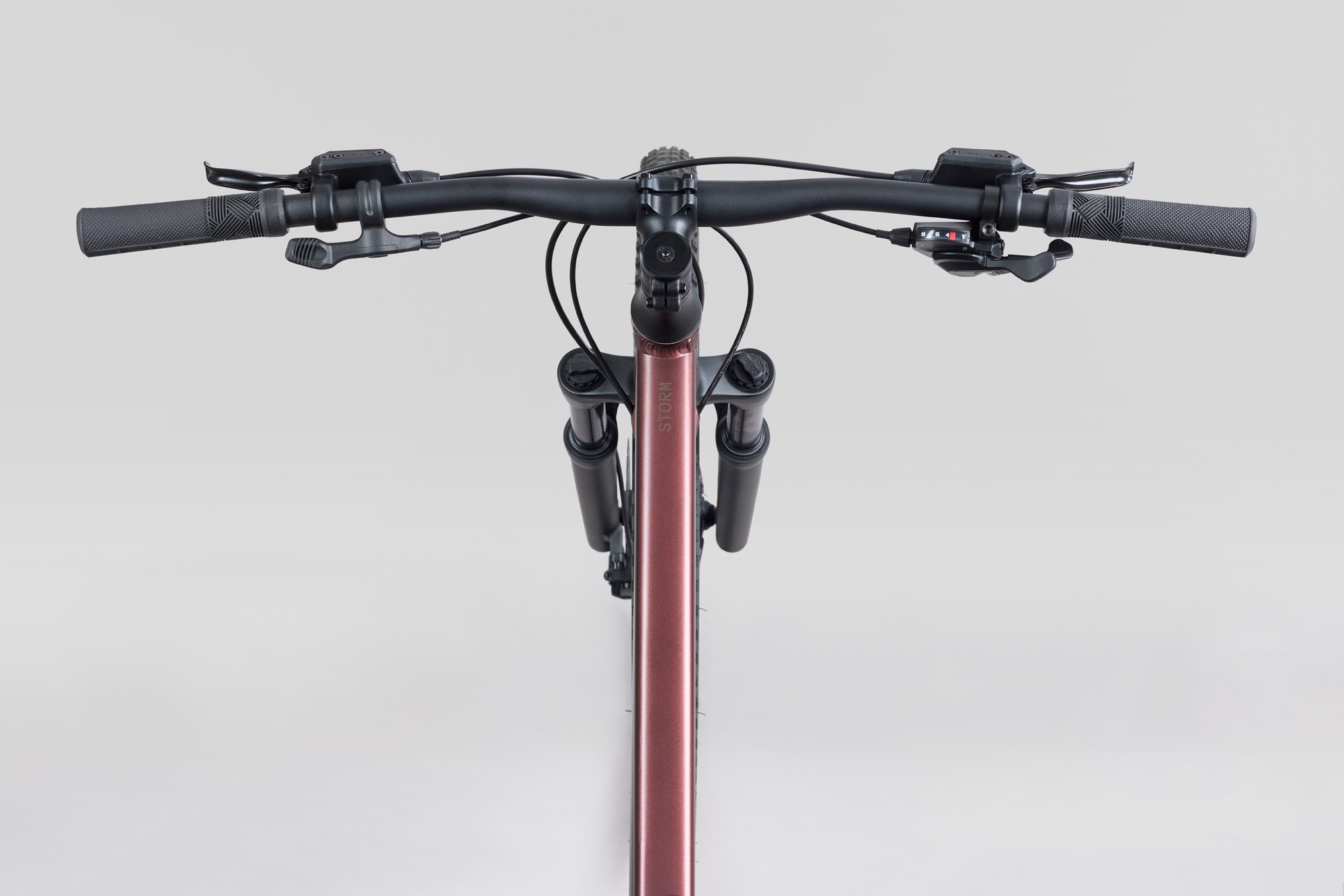

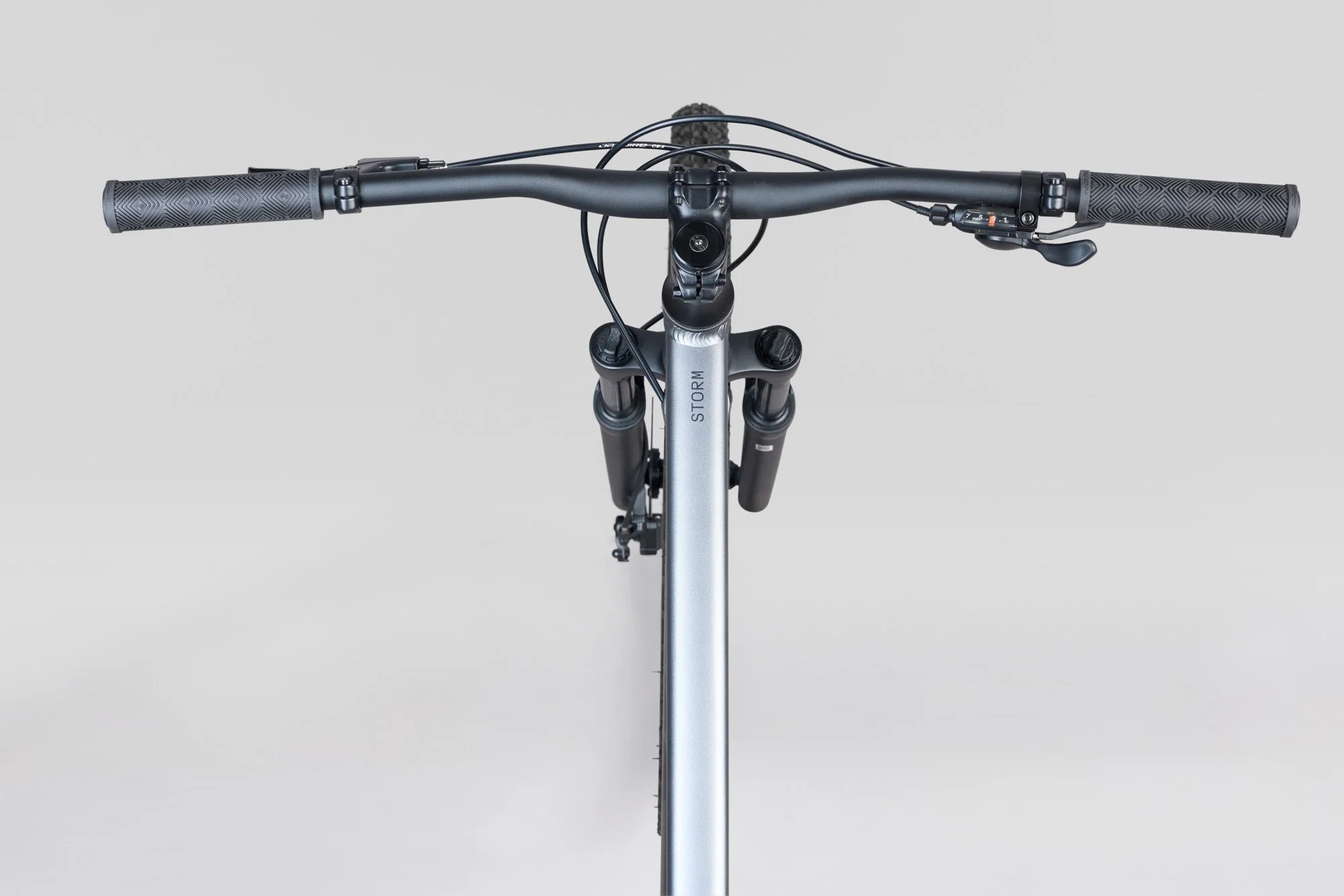

Image 8 of 8
-
Frameset
Frame Aluminium, Tig Welding, 10x135mm QR'
Fork SR Suntour XCE28 Coil, 100mm, 46mm offset, QR
Drivetrain
Rear Shifter Shimano SL-M315-7R, 7sp
Rear Derailleur Shimano RD-TY500, 7sp
Crankset Prowheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL)
Bottom Bracket Cartridge, ST 73mm, 113mm axle length
Cassette Shimano CS-HG210-7, 12-32T, 7sp
Chain KMC Z7, 7sp
Brakes
Front Brake C-Star, Resin pads, Mechanical Disc
Front Brake Rotor C-Star, 160mm, 6-bolt
Rear Brake C-Star, Resin pads, Mechanical Disc
Rear Brake Rotor C-Star, 160mm, 6-bolt
Brake Levers C-Start Alloy Levers, Reach adj
Components
Handlebar Norco Aluminium, 740mm (S-M) 760mm (L-XXL), 20mm Rise
Stem Alloy 40mm Length, 31.8mm Clamp
Seatpost Alloy 31.6mm, 300mm (S), 400mm (M/L/XL/XXL) length
Headset Zero Stack, 1-1/8" Steer, ZS44/28.6 | ZS44/30 1 1/8"
Saddle Norco XC, Steel Rail
Grips Norco, 139mm Length
Pedals Nylon Flat Pedal, Chromoly Axle
Seat Post Clamp Norco Alloy QR Clamp, 34.9mm ID
Wheels
Front Hub Formula DC-1420, 9x100mm QR, 32h, 6-bolt
Rear Hub Formula DC-27A,10x135mm QR, HG, 32h, 6-bolt
Rims Alloy XD-155, 32HFront TireCY, 29x2.25" (M-XXL) 27.5"x2.25 (S), Wire
Rear Tire CY, 29x2.25" (M-XXL) 27.5"x2.25 (S), Wire
Spokes/Nipples Stainless Steel w/Brass Nipples - Black
