Frameset
Frame Aluminium, Tig Welding, 10x135mm QR, Tapered HT
Fork SR Suntour XCT30 Coil, 100mm, 46mm offset, QR
Drivetrain
Rear Derailleur Shimano Essa RD-U2000, GS, 8sp
Crankset Prowheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL)
Bottom Bracket Cartridge, ST 73mm, 113mm axle length
Cassette Shimano ESSA CS-HG300-8, 11-45T, 8sp
Chain KMC Z8
Shifter Casing Shimano Altus SL-M315, 8sp
Brakes
Front Brake Shimano BR-MT200, Resin pads
Front Brake Rotor Shimano SM-RT26, 160mm, 6-Bolt
Rear Brake Shimano BR-MT200, Resin pads
Rear Brake Rotor Shimano SM-RT26, 160mm, 6-Bolt
Brake Levers Shimano BL-MT200
Components

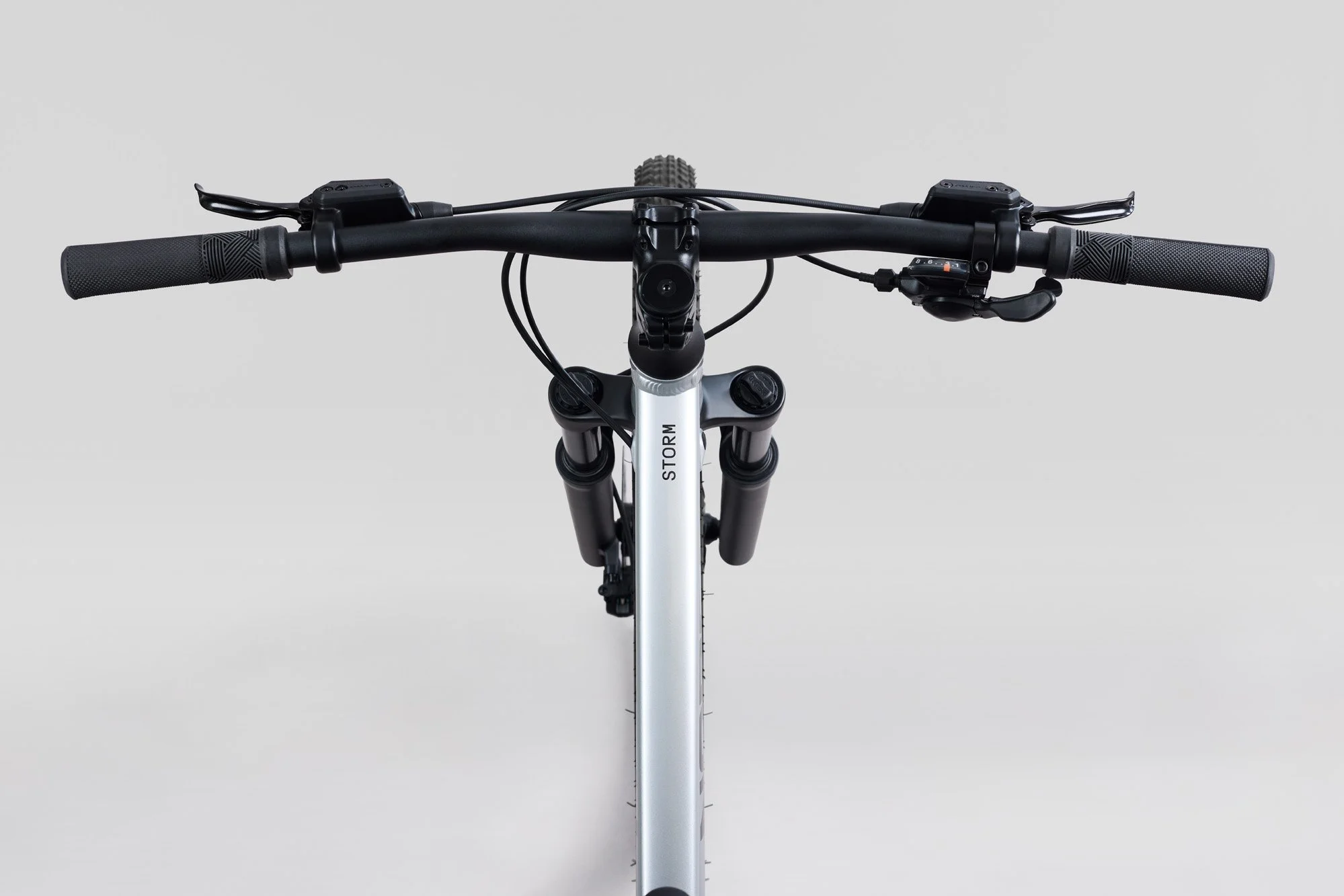

Handlebar Norco Aluminium, 740mm (S-M) 760mm (L-XXL), 20mm Rise
Stem Alloy 40mm Length, 31.8mm Clamp
Seat Post Alloy 31.6mm, 300mm (S), 400mm (M/L/XL/XXL) length
Headset Zero Stack, 1-1/8" Steer, ZS44/28.6 | ZS44/30 1 1/8"
Saddle Norco XC, Steel Rail
Grips Norco lock-On, 130mm length
Pedals Nylon Flat Pedal
Seat Post Clamp Norco Alloy QR, 34.9mm ID
Wheels
Front Hub Formula DC-1420 , 9x100mm QR, 32h, 6-bolt
Rear Hub Formula DC-27A,10x135mm QR, HG, 32h, 6-bolt
Rims Alloy XD-155, 32H
Front Tire CY, 29x2.25" (M-XXL) 27.5"x2.25 (S), Wire
Rear Tire CY, 29x2.25" (M-XXL) 27.5"x2.25 (S), Wire
