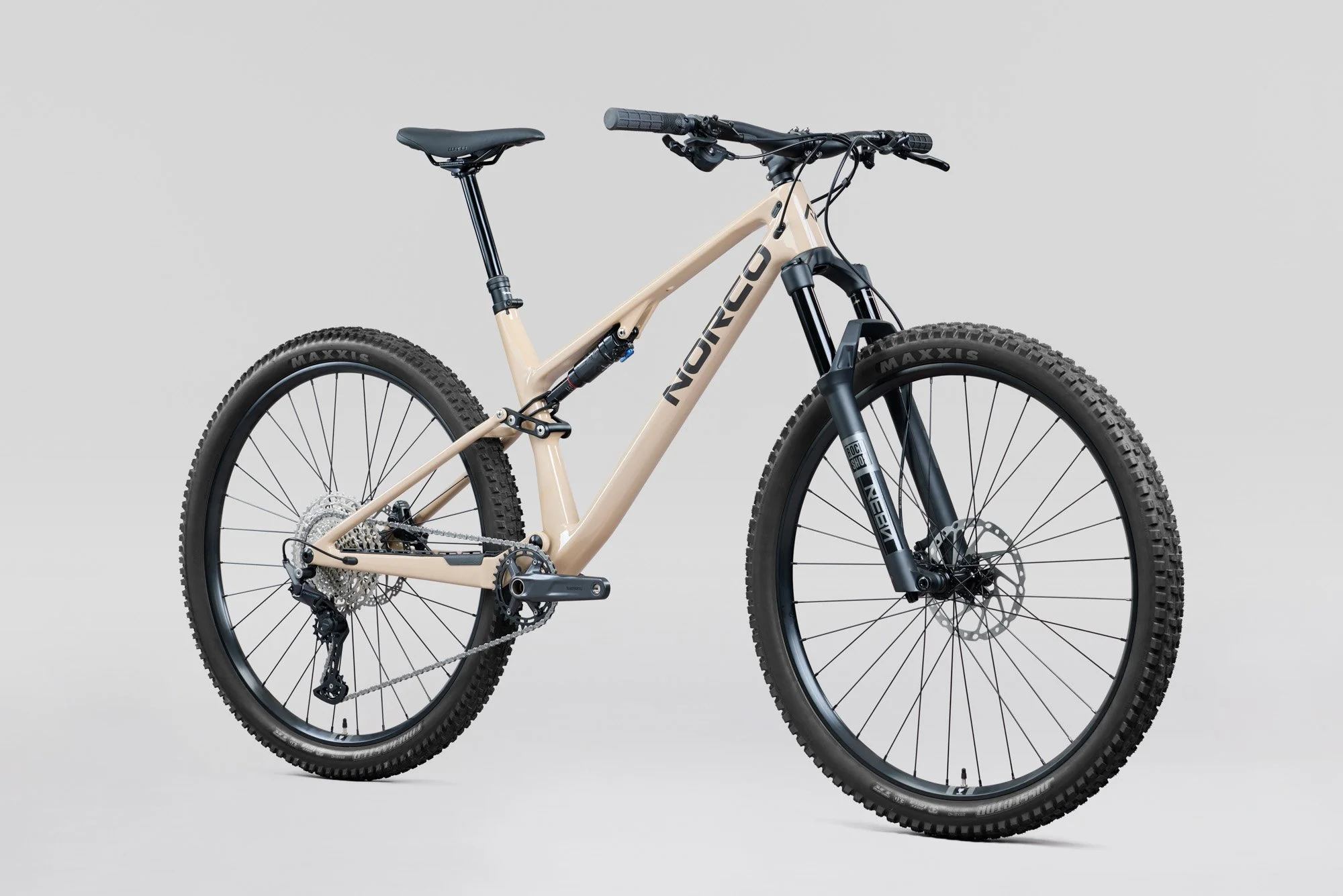

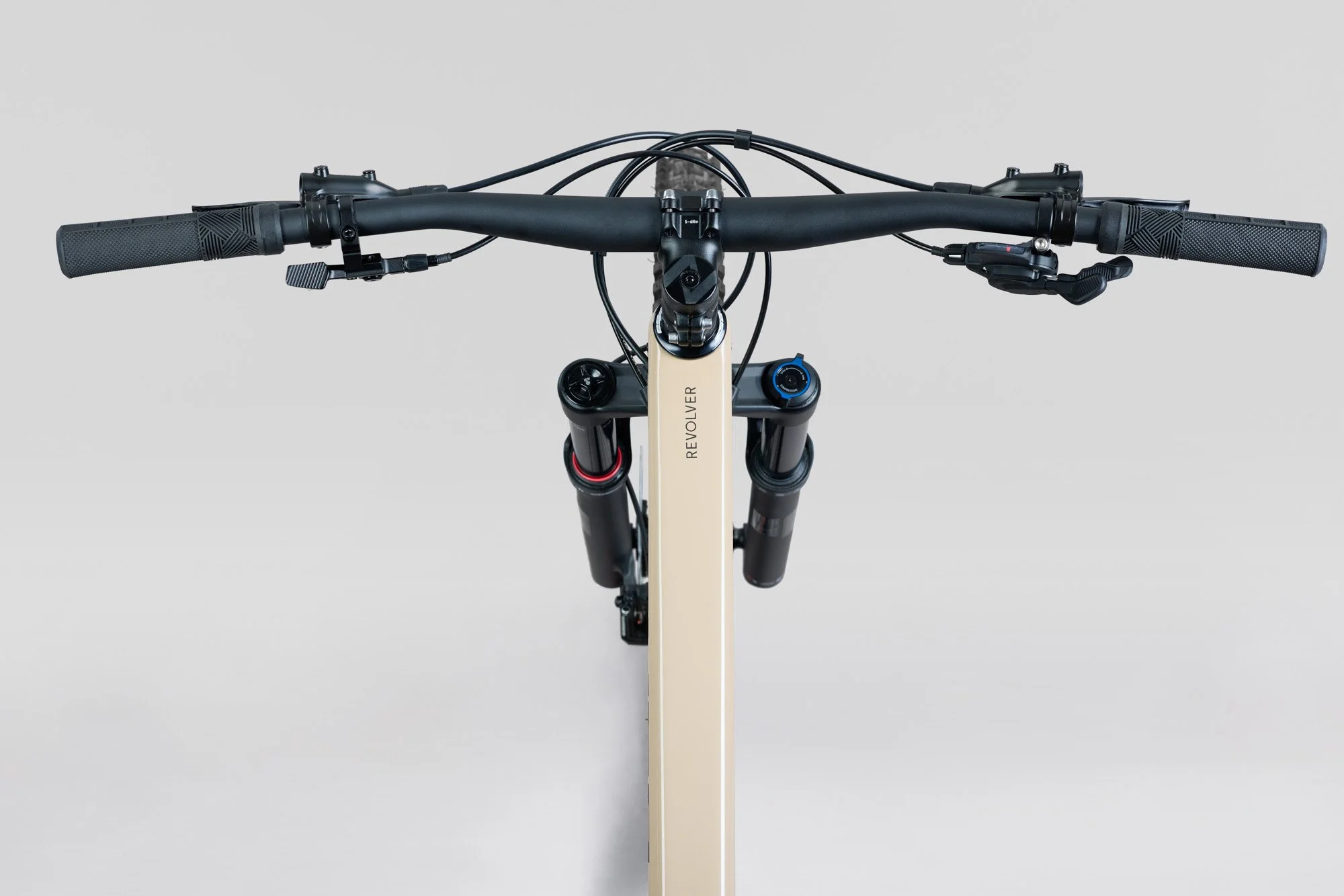

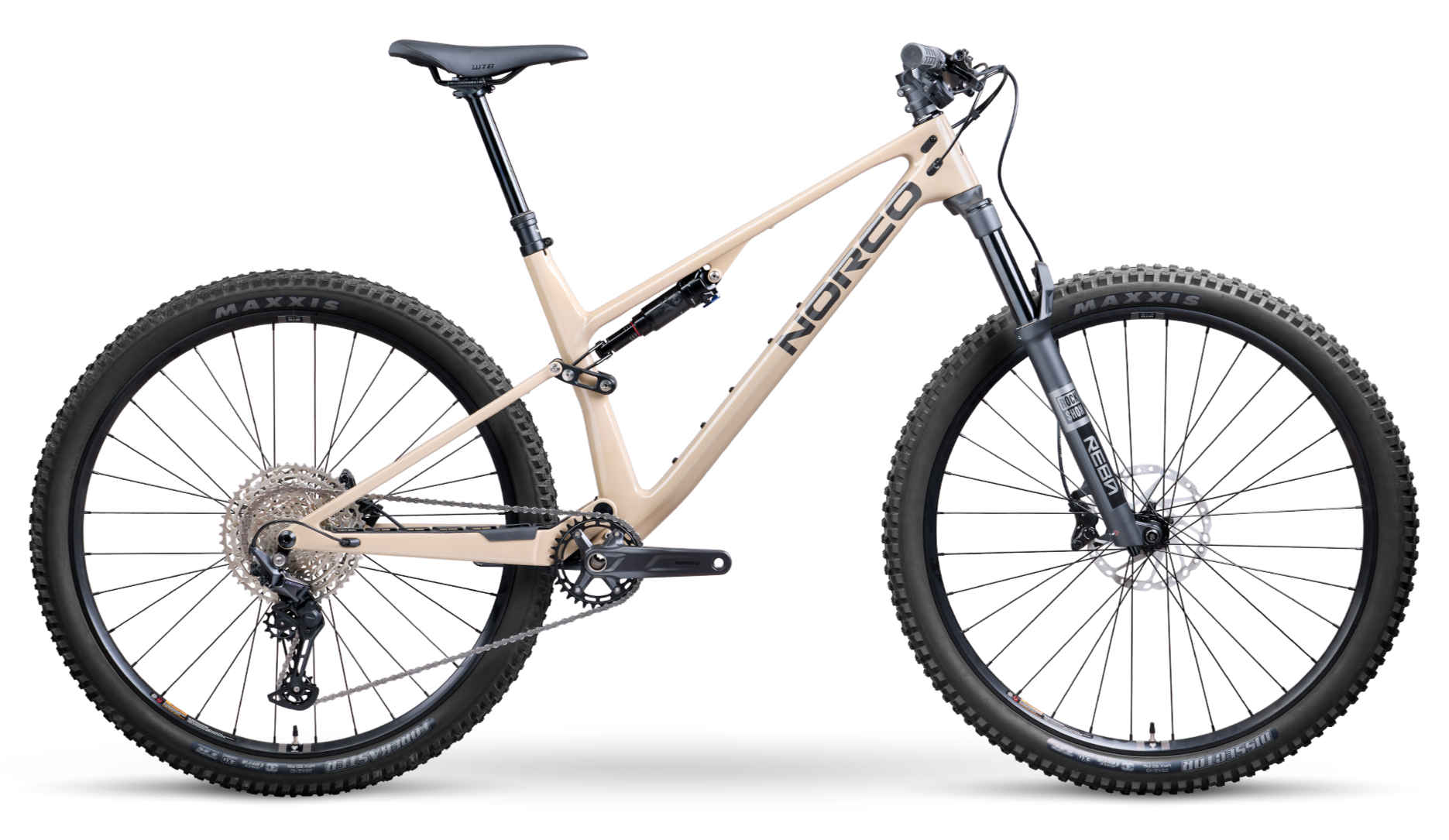

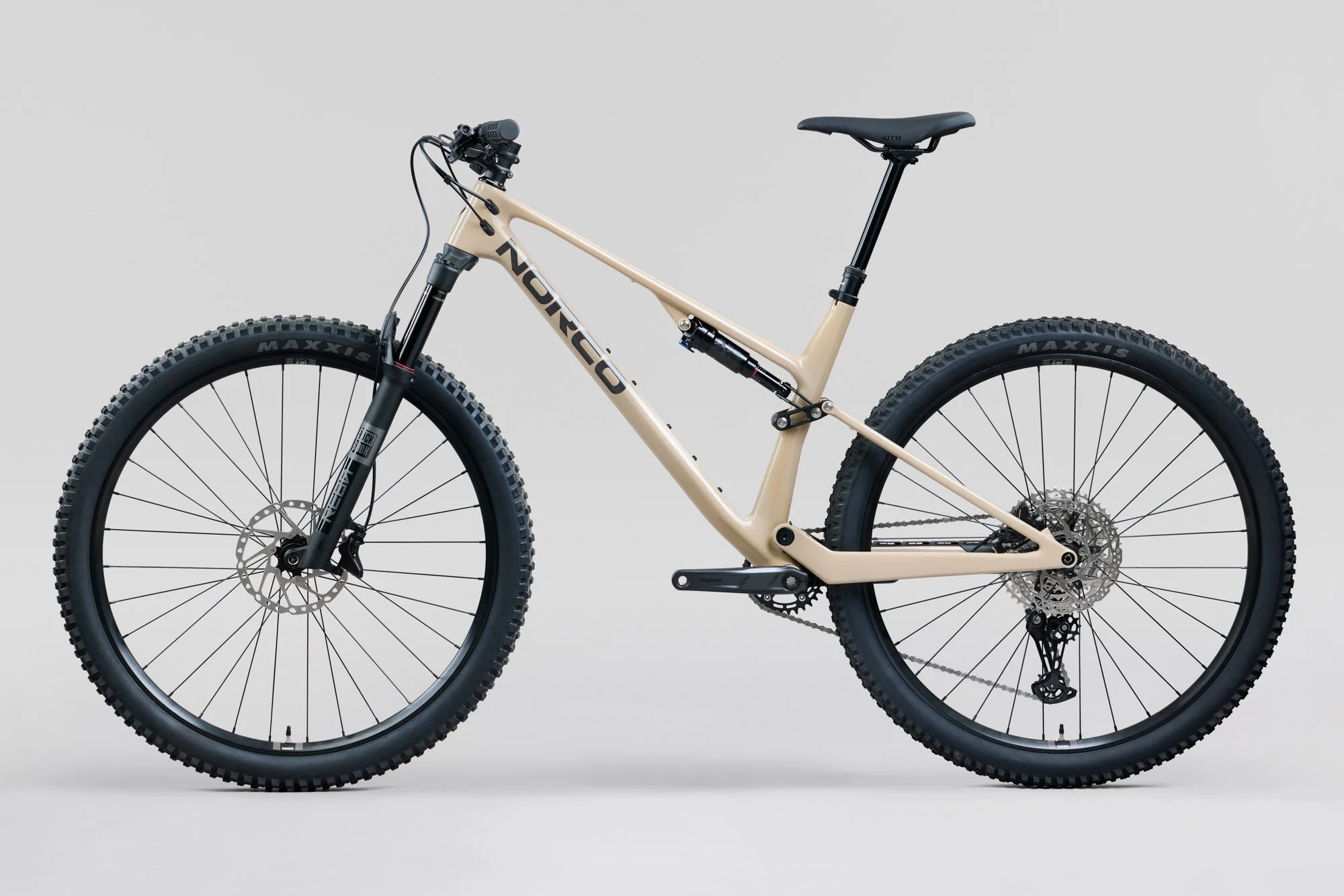

Norco Revolver LT C3

$5,600.00
Call us for availability
COLOUR/SIZE:

Efficient where it counts, aggressive where it matters.

The Revolver LT C3 is the lightest and most capable full-suspension frame Norco has ever built. At the core of its efficiency is our advanced approach to the Flex-Pivot design, letting us get improved performance out of the lightweight inline shocks we’re spec'ing that would typically be reserved for heavier and larger volume air shocks. With modern, aggressive XC geometry, consistent weight distribution across sizes, and a carbon frame layup optimized per frame size for stiffness and compliance, it’s a strong foundation for driving up and charging down.

Details

  • Precision and control for all-day efficiency

  • All the suspension performance without the weight.

  • Customized suspension development to support Revolver's best attributes.

  • A lightweight frame that encourages putting the hammer down.

  • Balanced weight distribution for top-of-class ride feel across sizes.

  • Ride Aligned™ - Perfect fit, dialled handling and personalized setup in minutes.

To download the Norco Size Guide please CLICK HERE

Efficient where it counts, aggressive where it matters.

The Revolver LT C3 is the lightest and most capable full-suspension frame Norco has ever built. At the core of its efficiency is our advanced approach to the Flex-Pivot design, letting us get improved performance out of the lightweight inline shocks we’re spec'ing that would typically be reserved for heavier and larger volume air shocks. With modern, aggressive XC geometry, consistent weight distribution across sizes, and a carbon frame layup optimized per frame size for stiffness and compliance, it’s a strong foundation for driving up and charging down.

Details

  • Precision and control for all-day efficiency

  • All the suspension performance without the weight.

  • Customized suspension development to support Revolver's best attributes.

  • A lightweight frame that encourages putting the hammer down.

  • Balanced weight distribution for top-of-class ride feel across sizes.

  • Ride Aligned™ - Perfect fit, dialled handling and personalized setup in minutes.

To download the Norco Size Guide please CLICK HERE

  • Frameset

    Frame Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™

    Fork RockShox Reba RL, Motion Control, 130mm, 44mm offset

    Rear Shock RockShox SID LUX Select +, 190x45mm, Std eyelet

    Drivetrain

    Rear Shifter Shimano Deore SL-M6200-IR, 12sp

    Rear Derailleur Shimano Deore RD-M6200, SGS, 12sp

    Crankset Shimano Deore FC-MT520, 32T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5)

    Bottom Bracket Shimano BB-MT501, BSA 73mm

    Cassette Shimano Deore CS-M6200-12, 10-51T, 12sp

    Chain Shimano Deore CN-M6100, 12sp

    Brakes

    Front Brake Shimano BR-MT420, Resin pads

    Front Brake Rotor Shimano SM-RT54, 180mm, C-lock

    Rear Brake Shimano BR-MT420, Resin pads

    Rear Brake Rotor Shimano SM-RT54, 180mm, C-lock

    Brake Levers Shimano BL-MT401

    Components

    Handlebar Norco 6061, 760mm (S1,S2,S3) 780mm (S4,S5), 20mm Rise

    Stem 6061 Alloy, 40mm Length, 35mm Clamp

    Seatpost TranzX YSI36 RAD+, 31.6mm, 150mm (S1, S2) -170mm (S3) -200mm (S4) - 230mm (S5)

    Headset FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )

    Saddle WTB Silverado Medium

    Grips Norco Lock On, 130 length

    Seatpost Clamp Norco Alloy Nutted Clamp, 34.9mm ID

    Wheels

    Front Hub Shimano HB-TC500-15-B,15x110mm Boost, 32H, C-lock

    Rear Hub Shimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock

    Rims WTB ST TCS 2.0, 27mm ID, 32H

    Front Tire Maxxis NEW Dissector, 3C MaxxTerra EXO, 29X2.4"

    Rear Tire Maxxis NEW Forekaster, 3C MaxxTerra EXO, 29x2.4"
