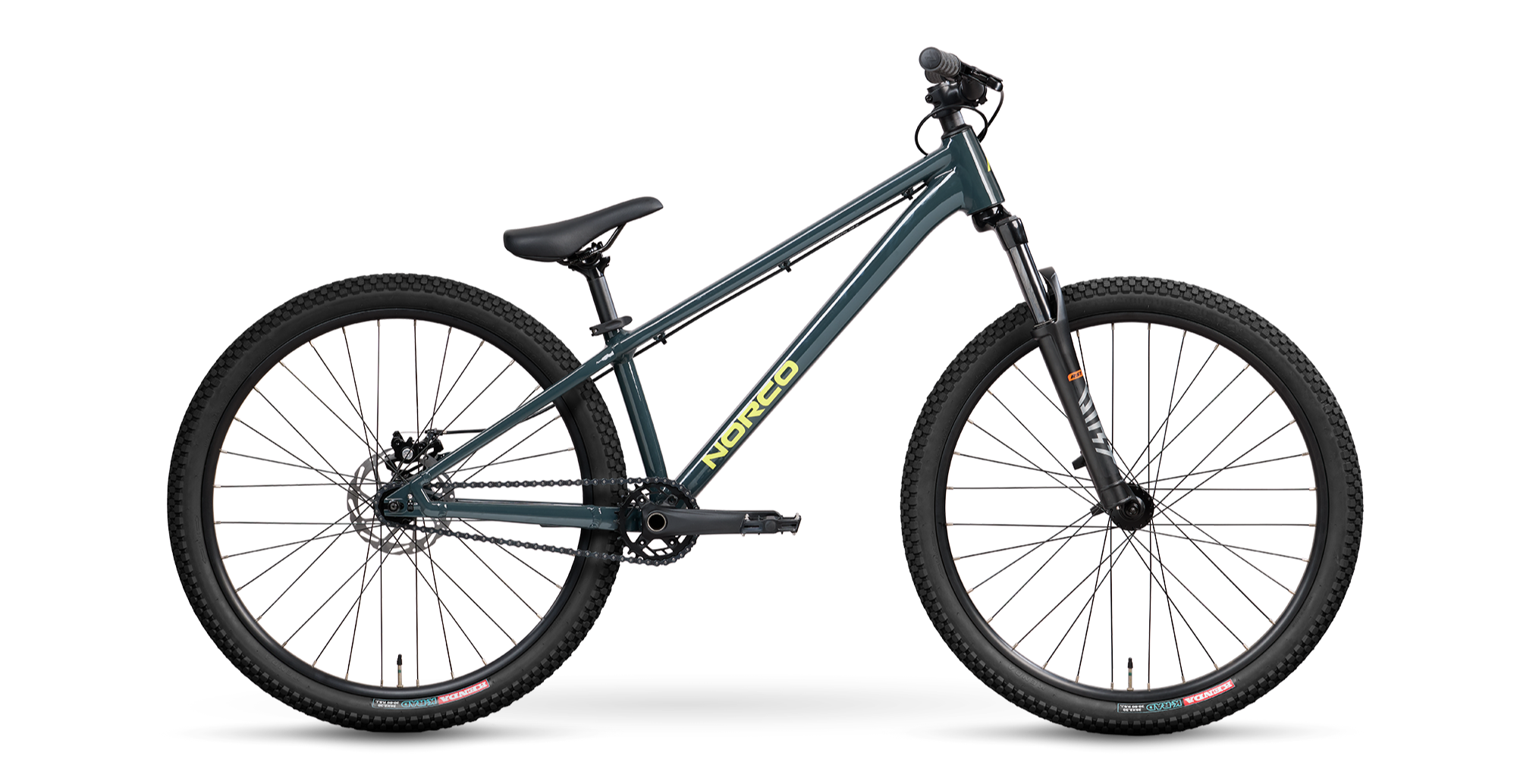

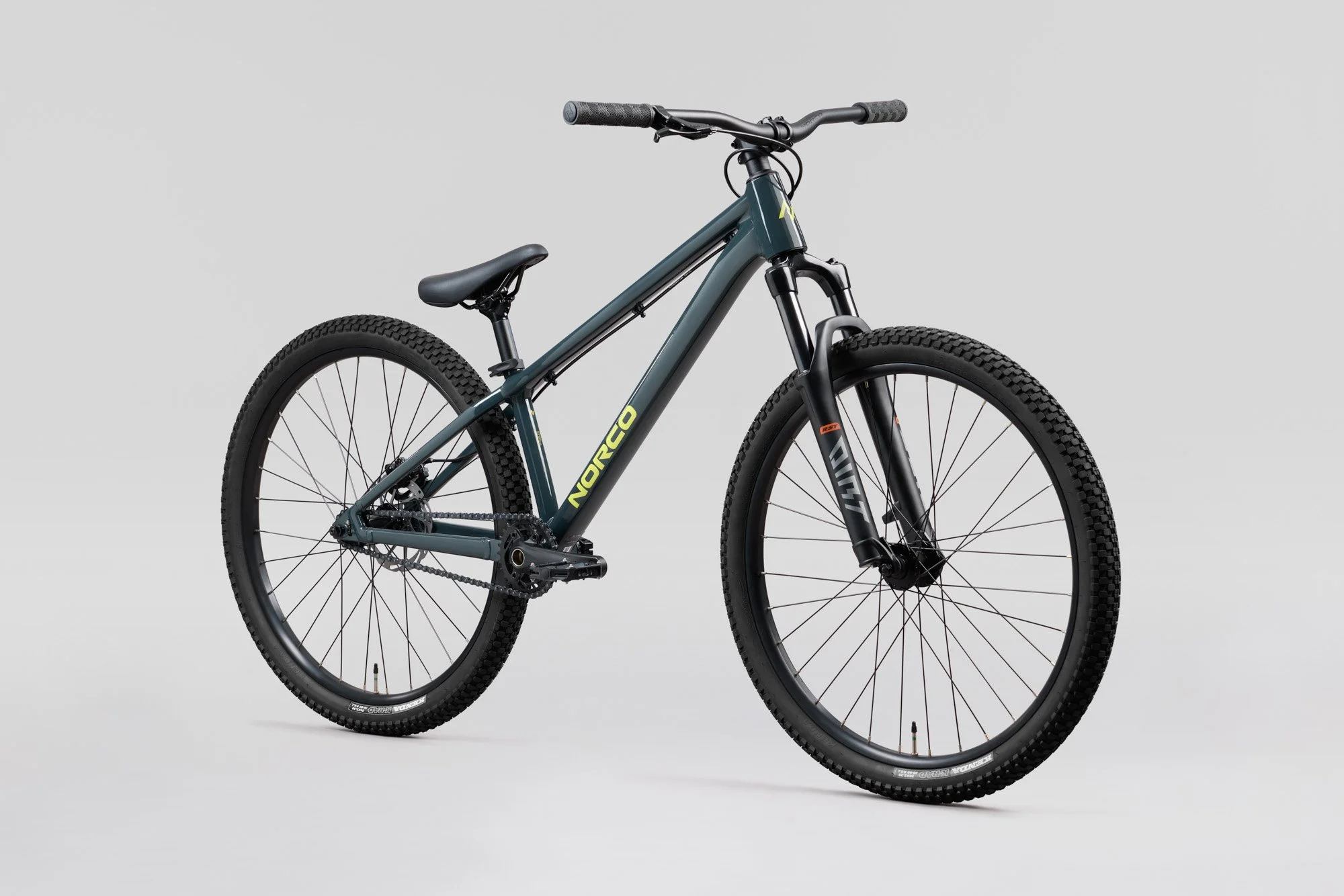

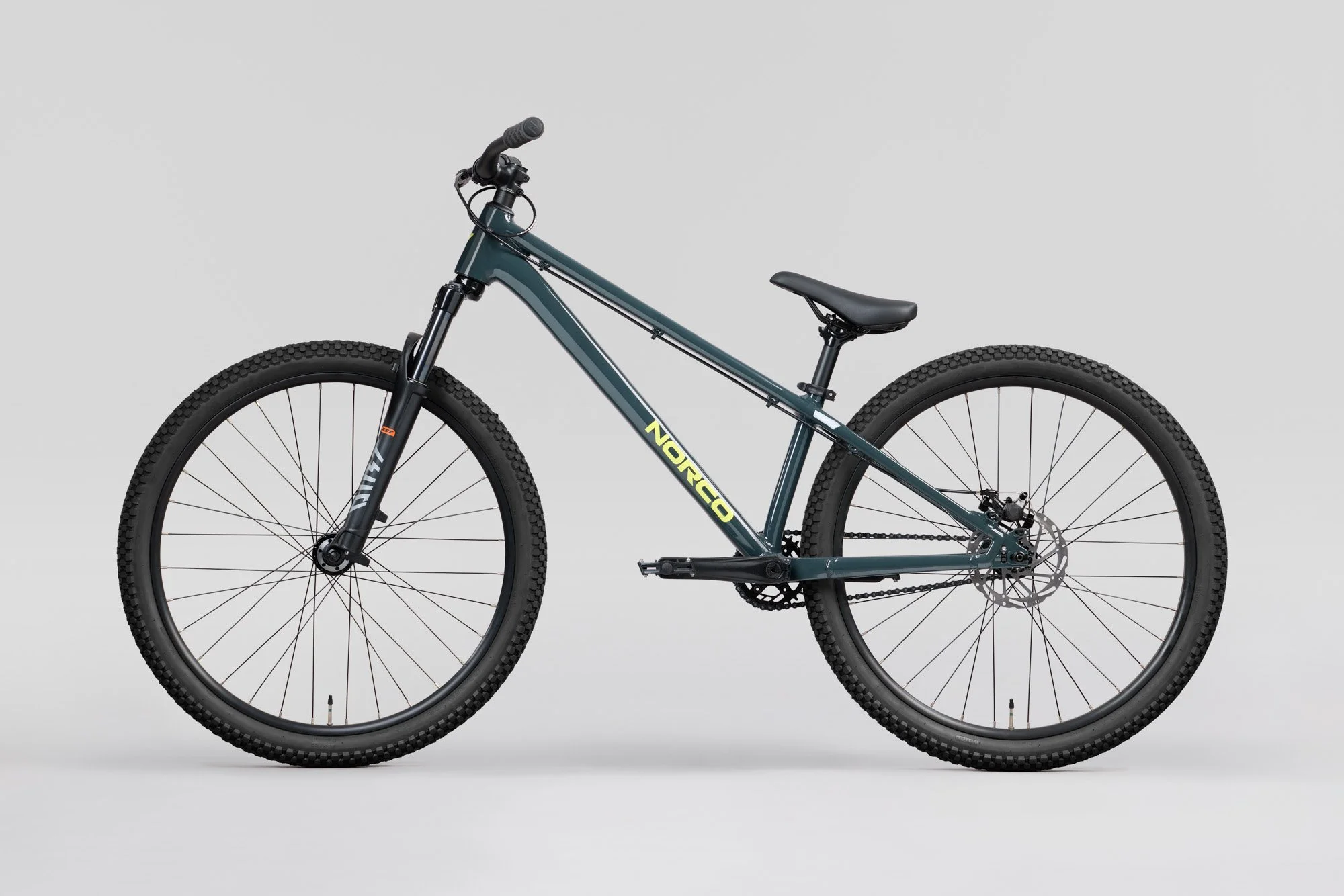

Norco Rampage 1

Frameset

Frame Aluminium DJ 26"

Fork Manitou Circus Comp, 100mm, 20x110mm

Drivetrain

Crankset Prowheel Forged 2pc, 30T, 165mm

Bottom Bracket Sealed Cartridge, ISIS 73mm

Cassette Single speed, 14T

Chain KMC Z1, 1/2 x 3/32"

Brakes

Front Brake Tektro MD-280, Mechanical, Resin pads (not pictured)

Front Brake Rotor 160mm 6 bolt

Rear Brake Shimano Sora BR-R317 mechanical caliper

Rear Brake Rotor Shimano SM-RT26, 160mm, 6 bolt

Brake Levers Title G1 brake lever

Components

Handlebar Title AH1, 800mm, 38mm rise

Stem Norco, 40mm Length, 31.8 Clamp

Seatpost Alloy, 27.2mm ID, 200mm Length

Headset Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)

Headset Spacer 2x10mm , 1 x 5mm

Saddle Title JS1GripsNorco w/small flange, 130mm length

Pedals FP 870ZP resin BMX flat pedal with metal pins

Seatpost Clamp Norco Alloy QR, 31.8mm ID

Wheels

Front Hub KT sealed bearing, 20x110, 32H, 6 bolt

Rear Hub KT sealed bearing, 3/8" nutted axle, 32H, 14T SS sproket, 6 bolt

Rims XD-155 DW, 32h, F/R-26"

Front Tire Maxxis Ikon, 3C Maxx Speed, 26"x 2.35, Folding

Rear Tire Maxxis Ikon, 3C Maxx Speed, 26"x 2.35, Folding

Spokes/Nipples Stainless Steel, 14g

Weight

Weight 12.36 kg (27.2 lbs)

Weight Size Medium
