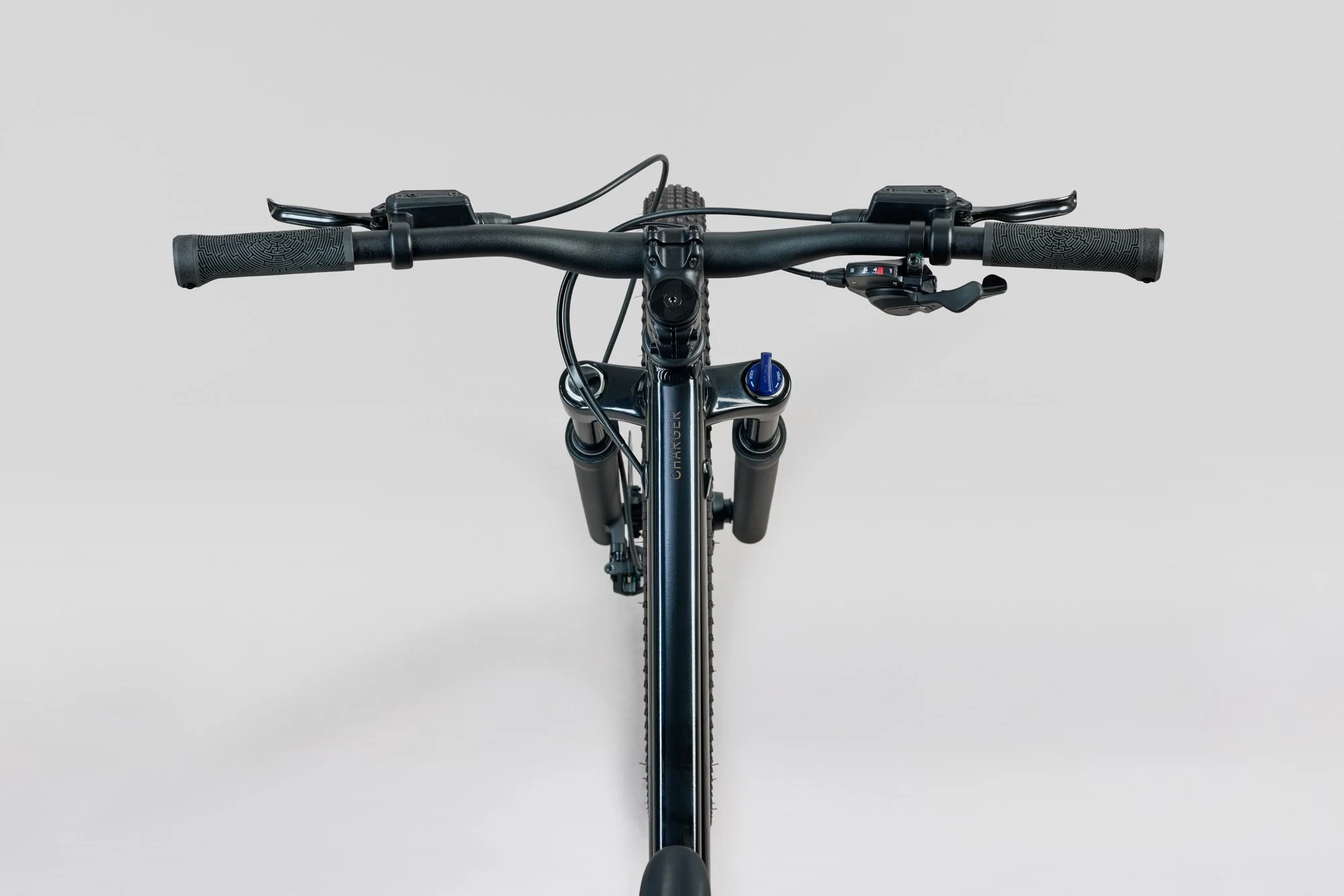

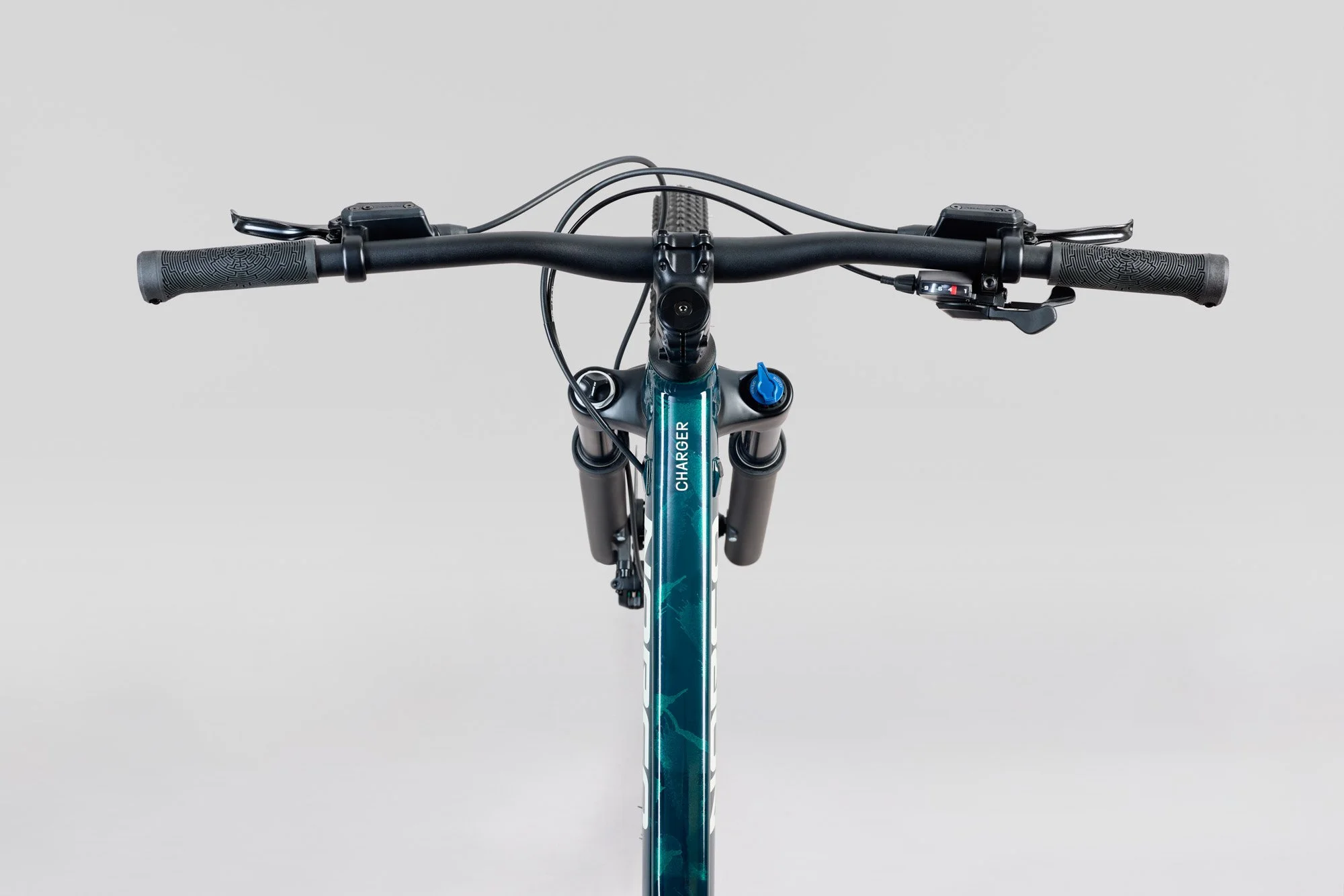

Image 1 of 8

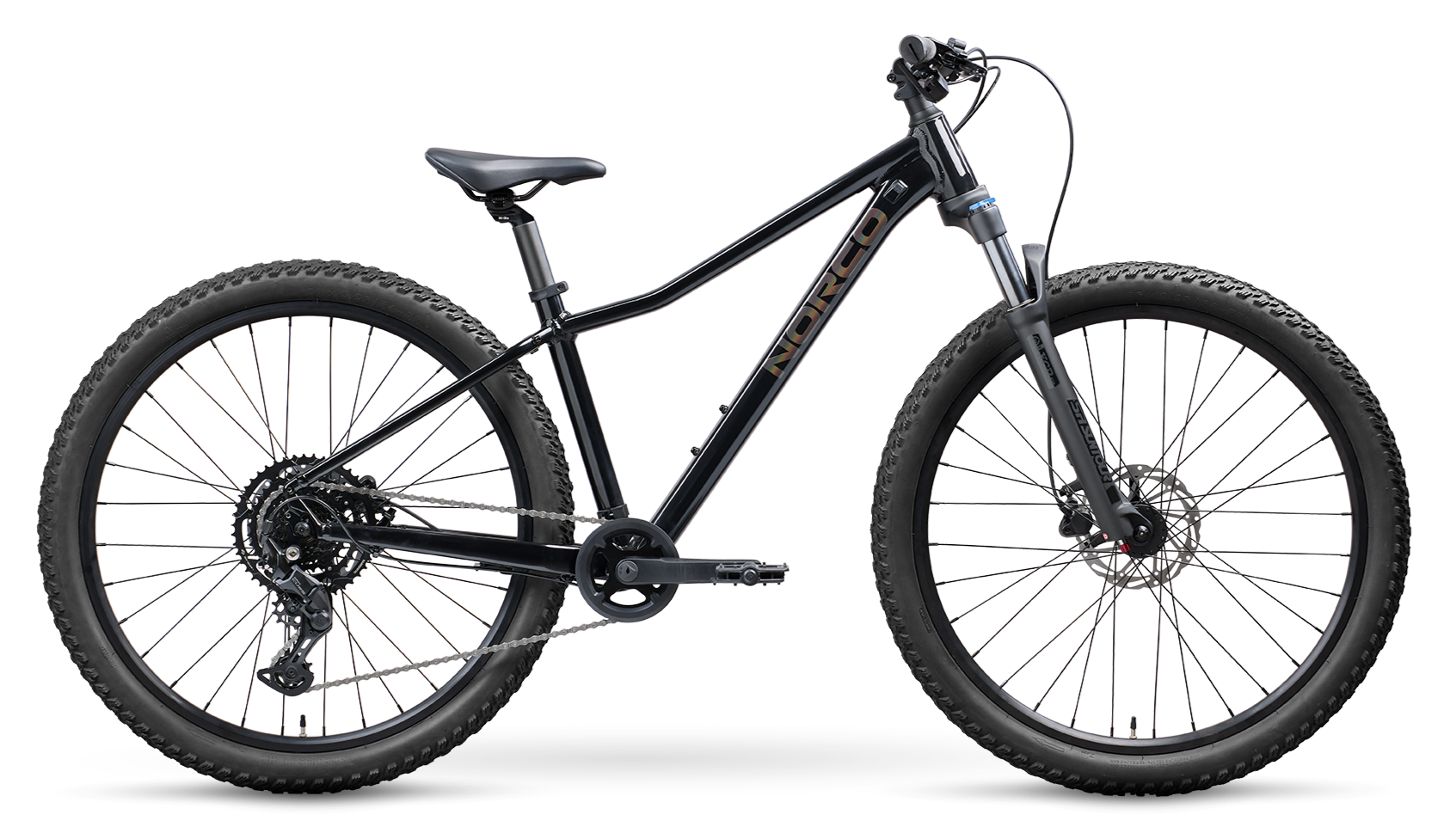

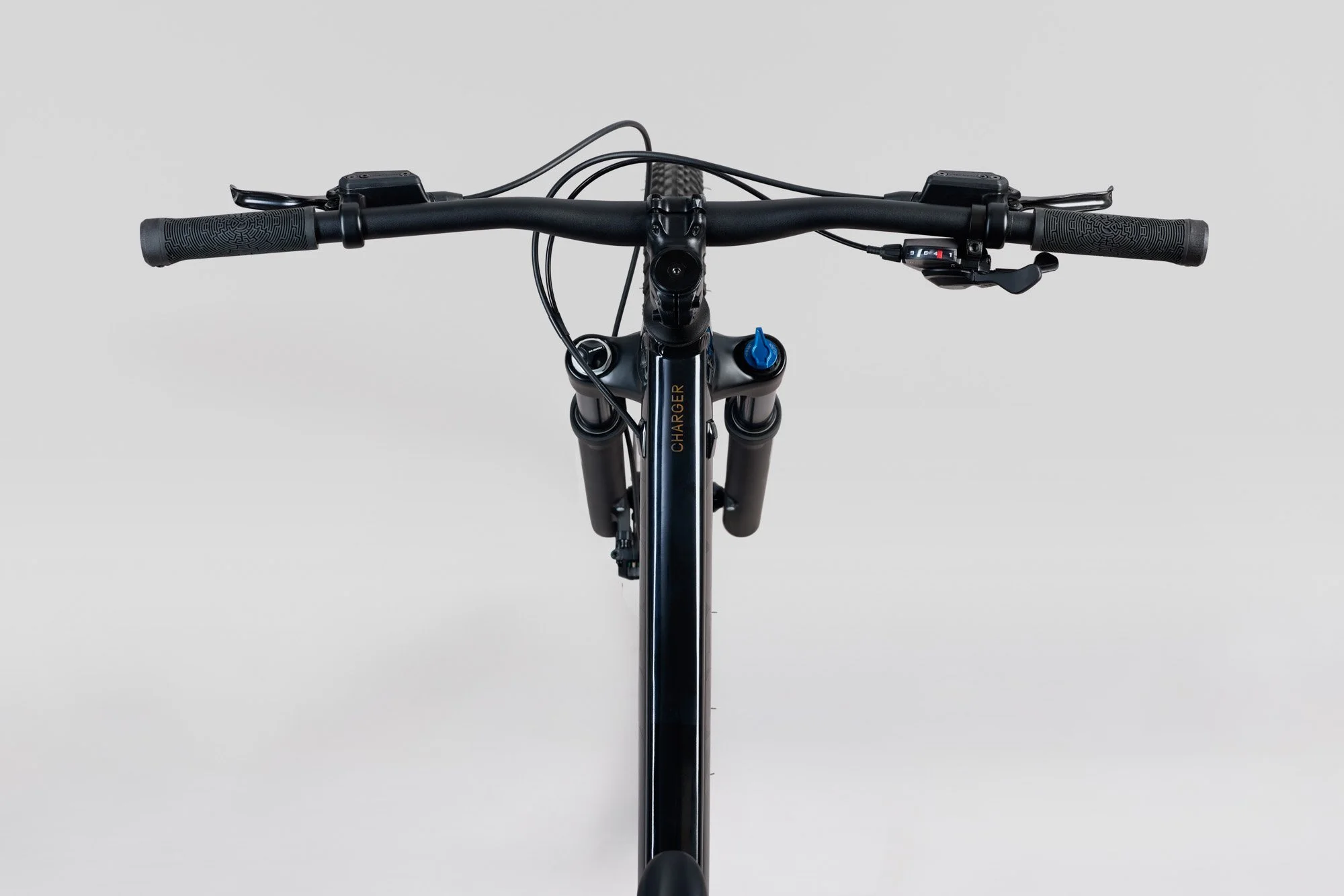

Image 2 of 8

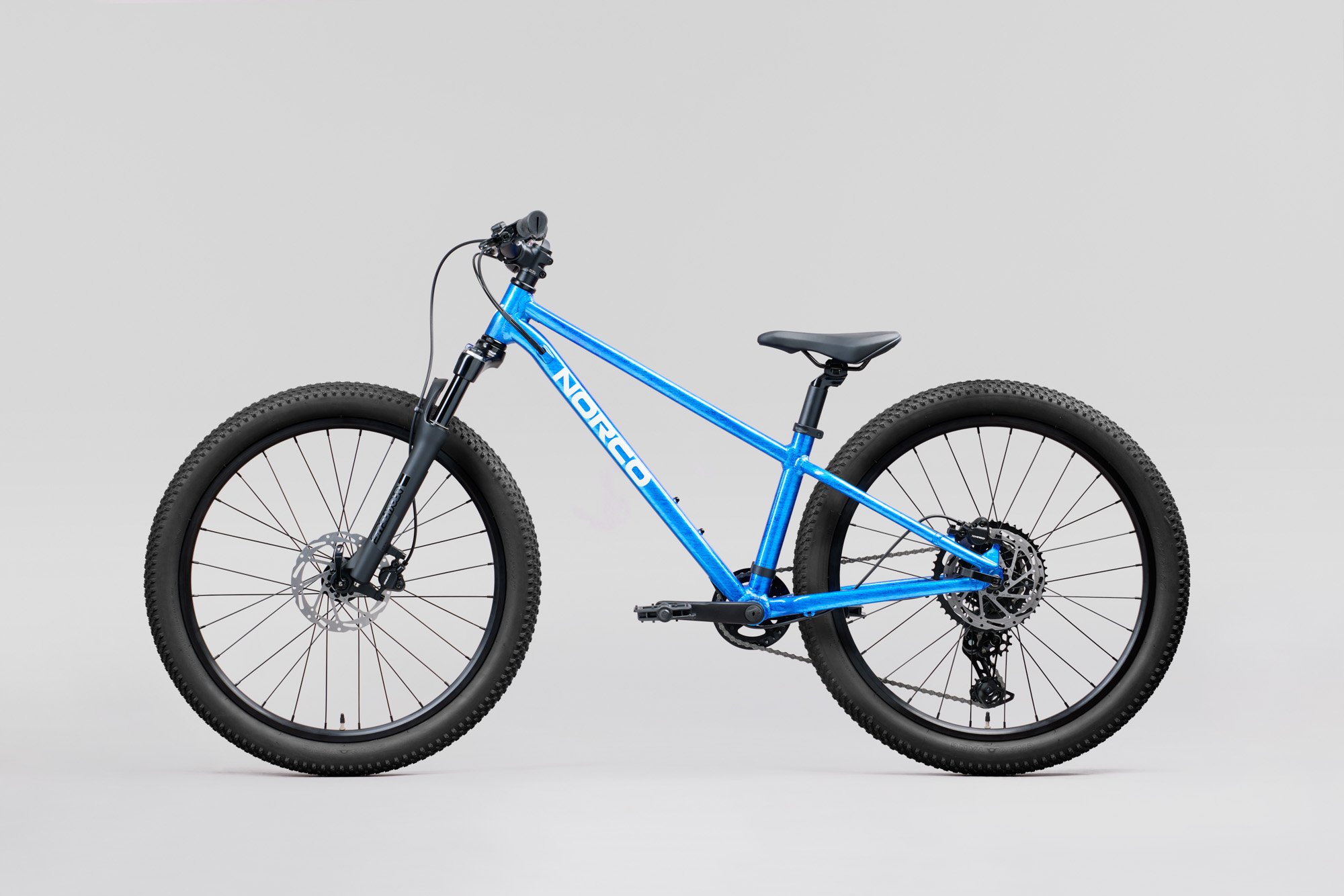

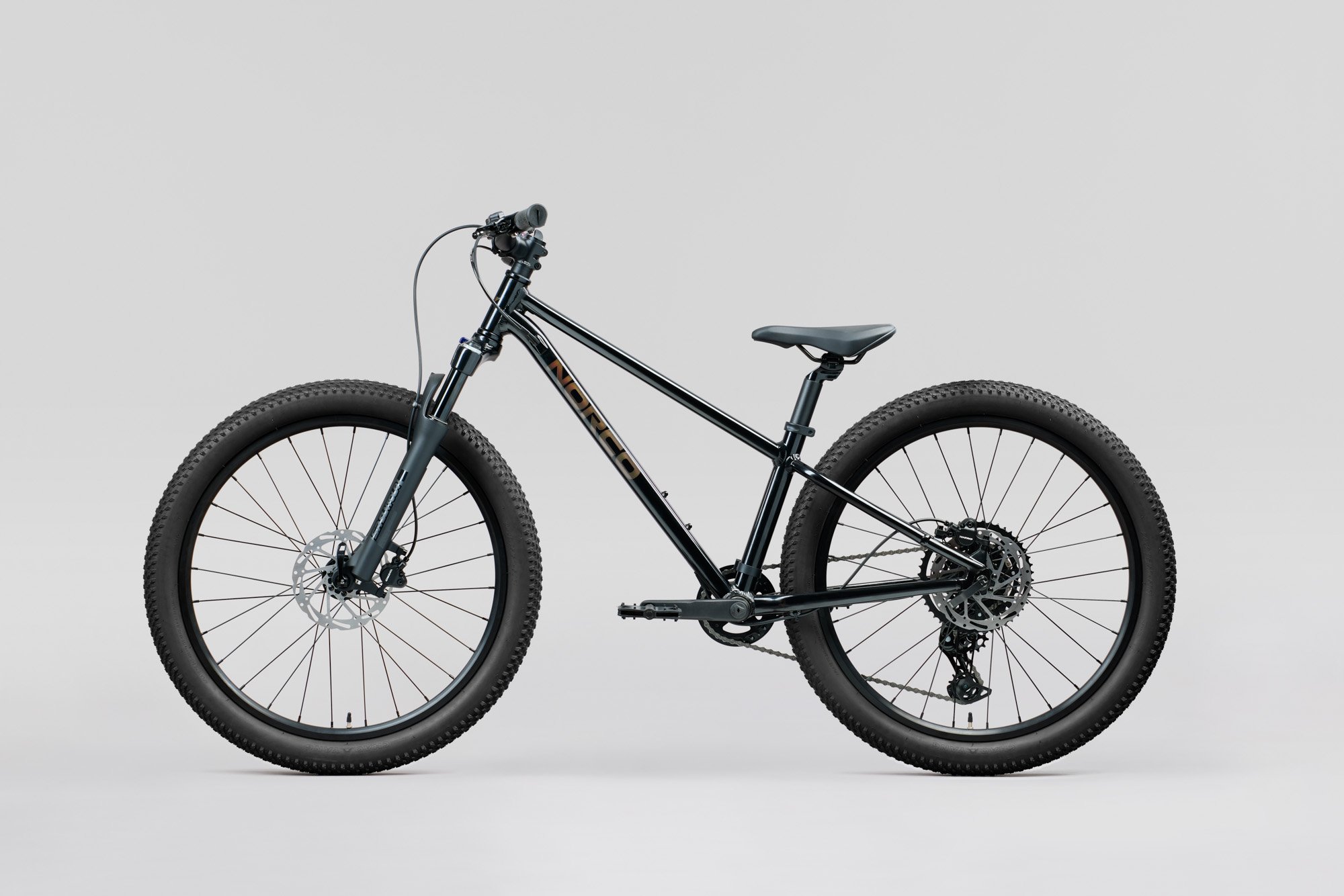

Image 3 of 8

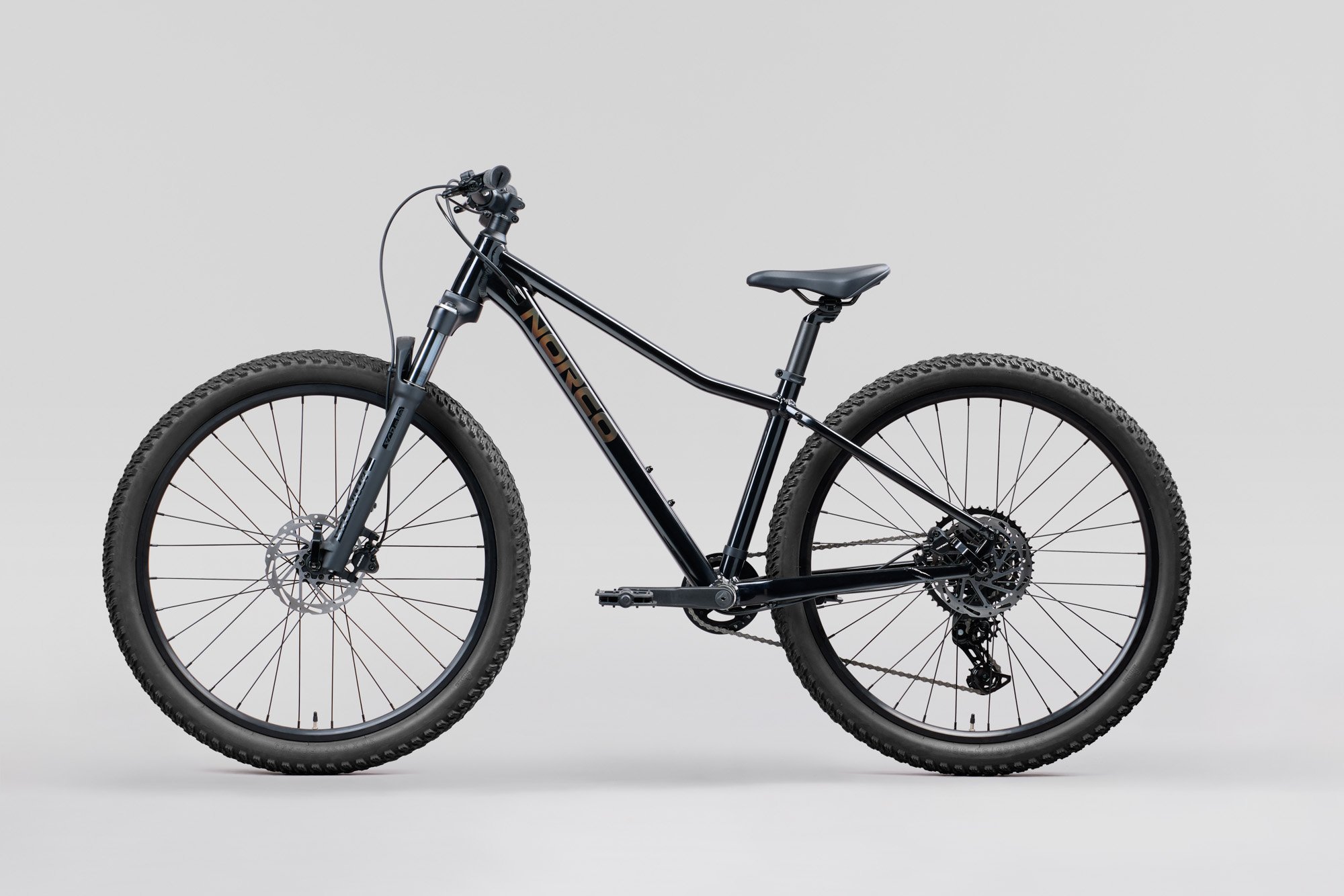

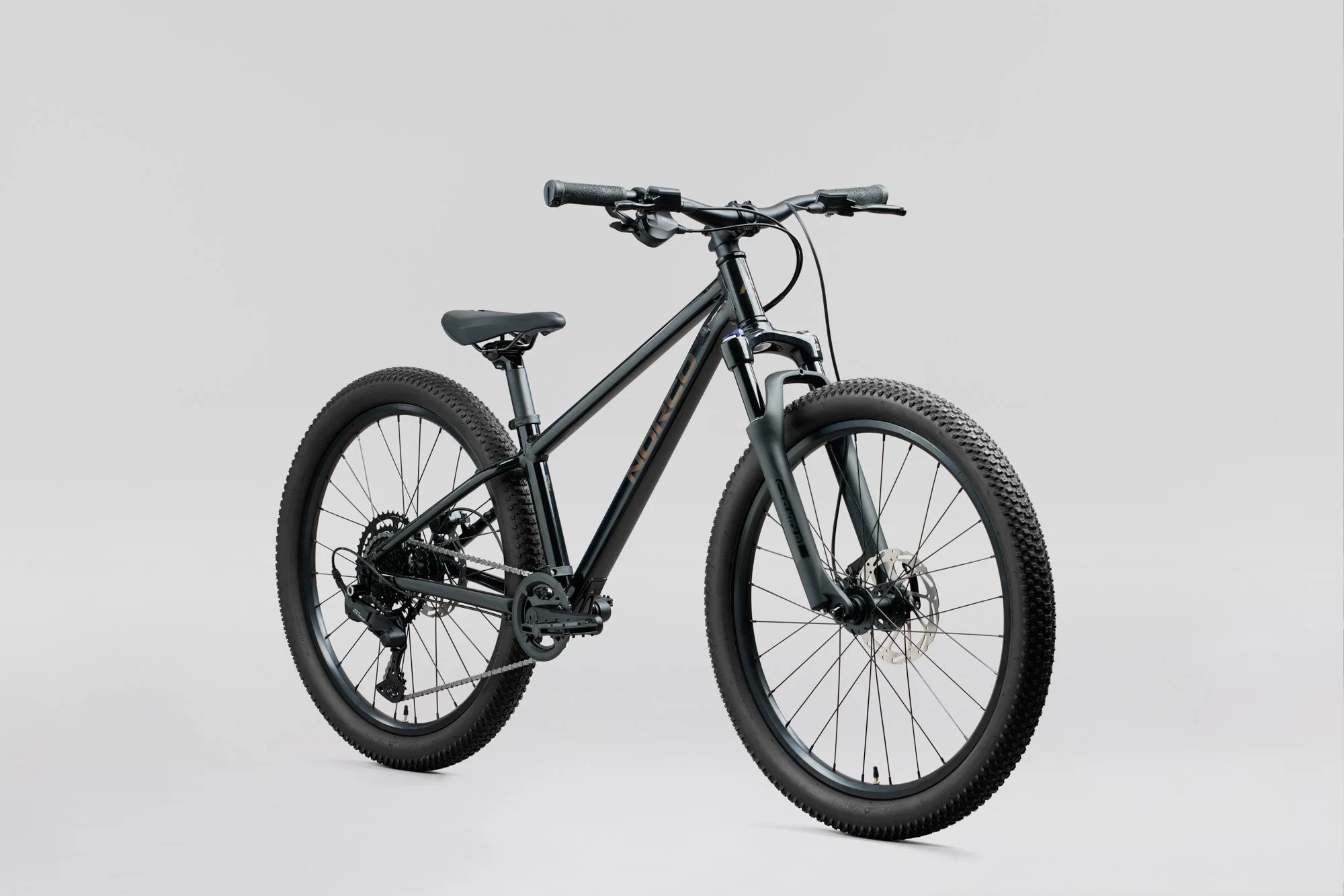

Image 4 of 8

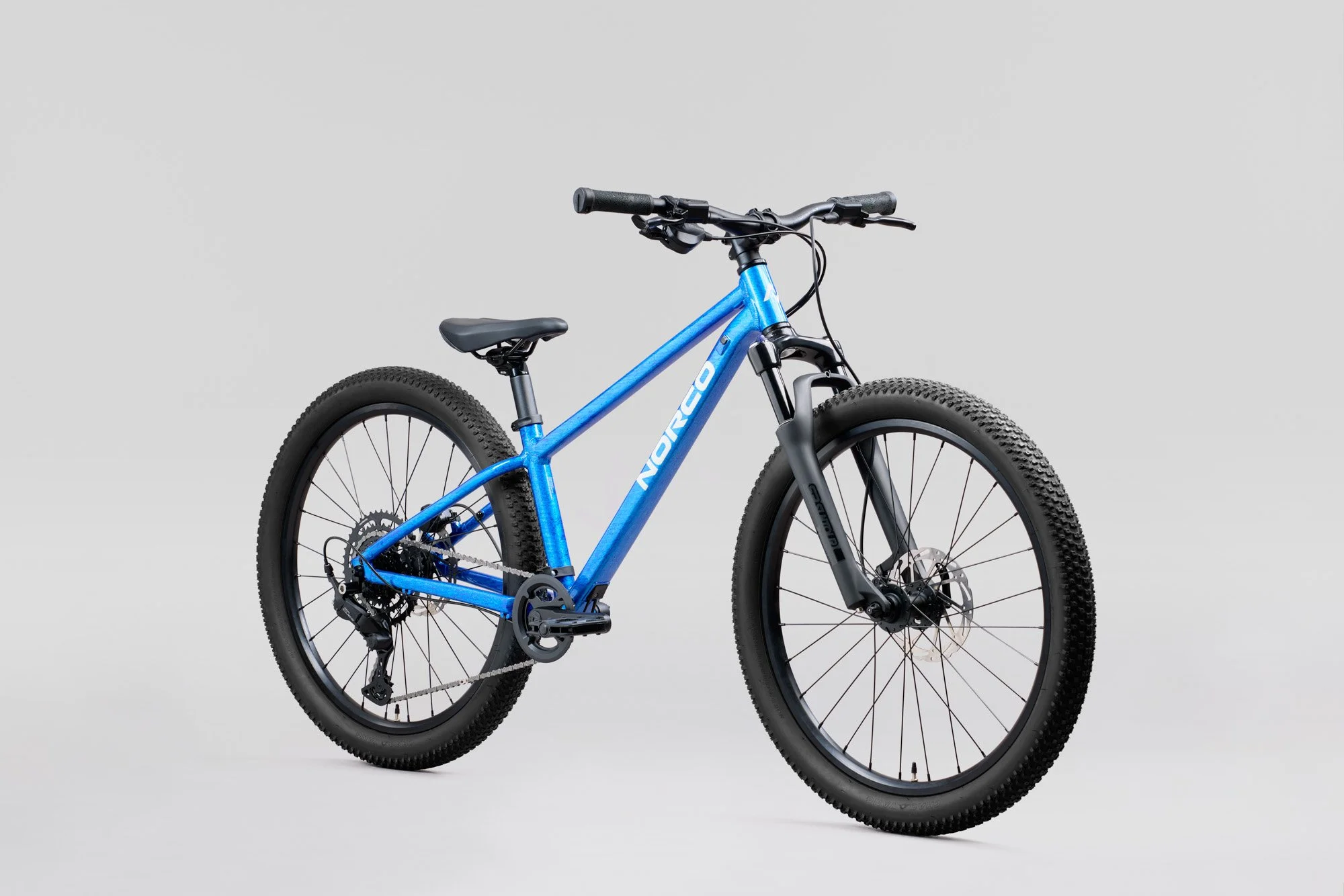

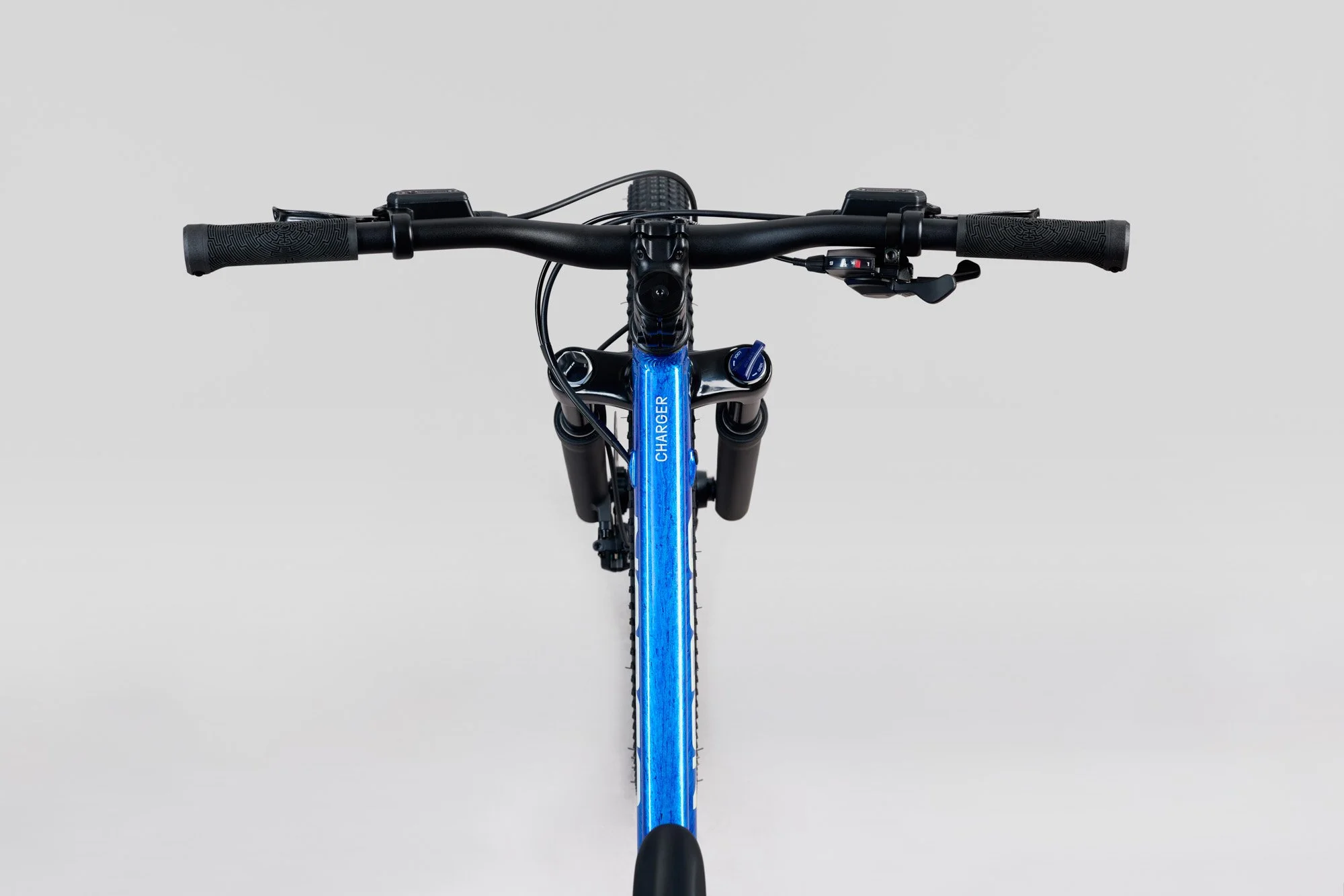

Image 5 of 8

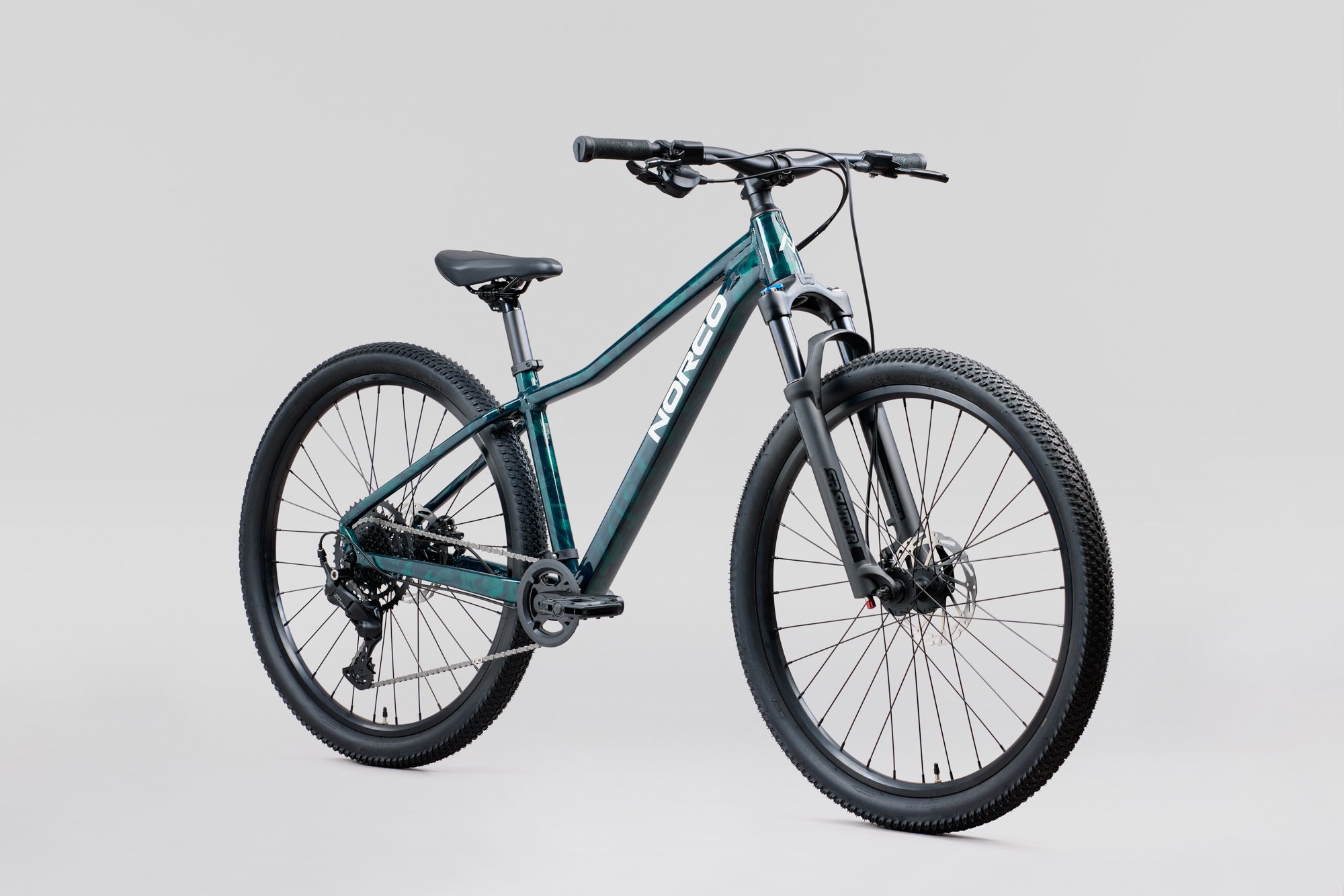

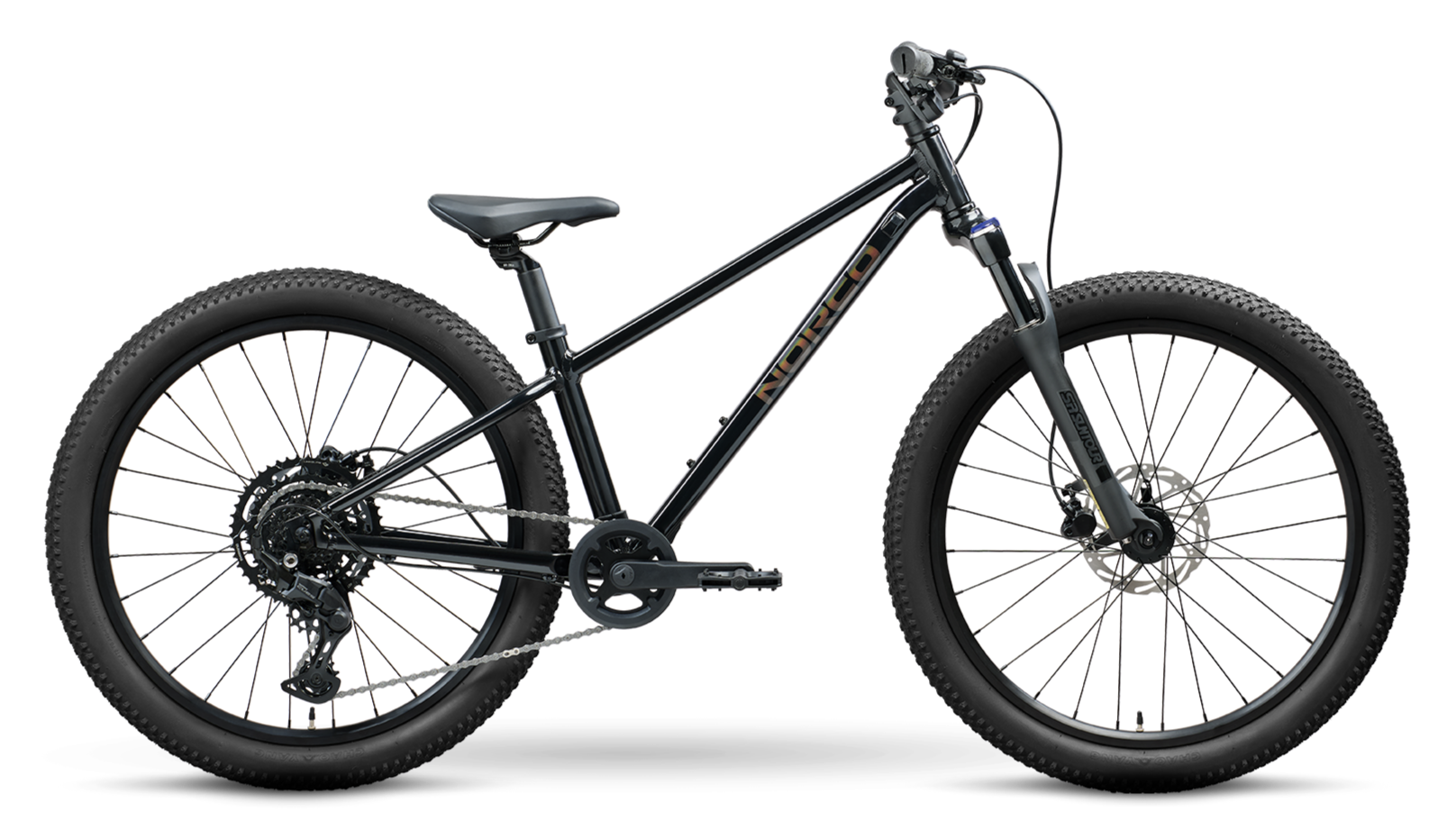

Image 6 of 8

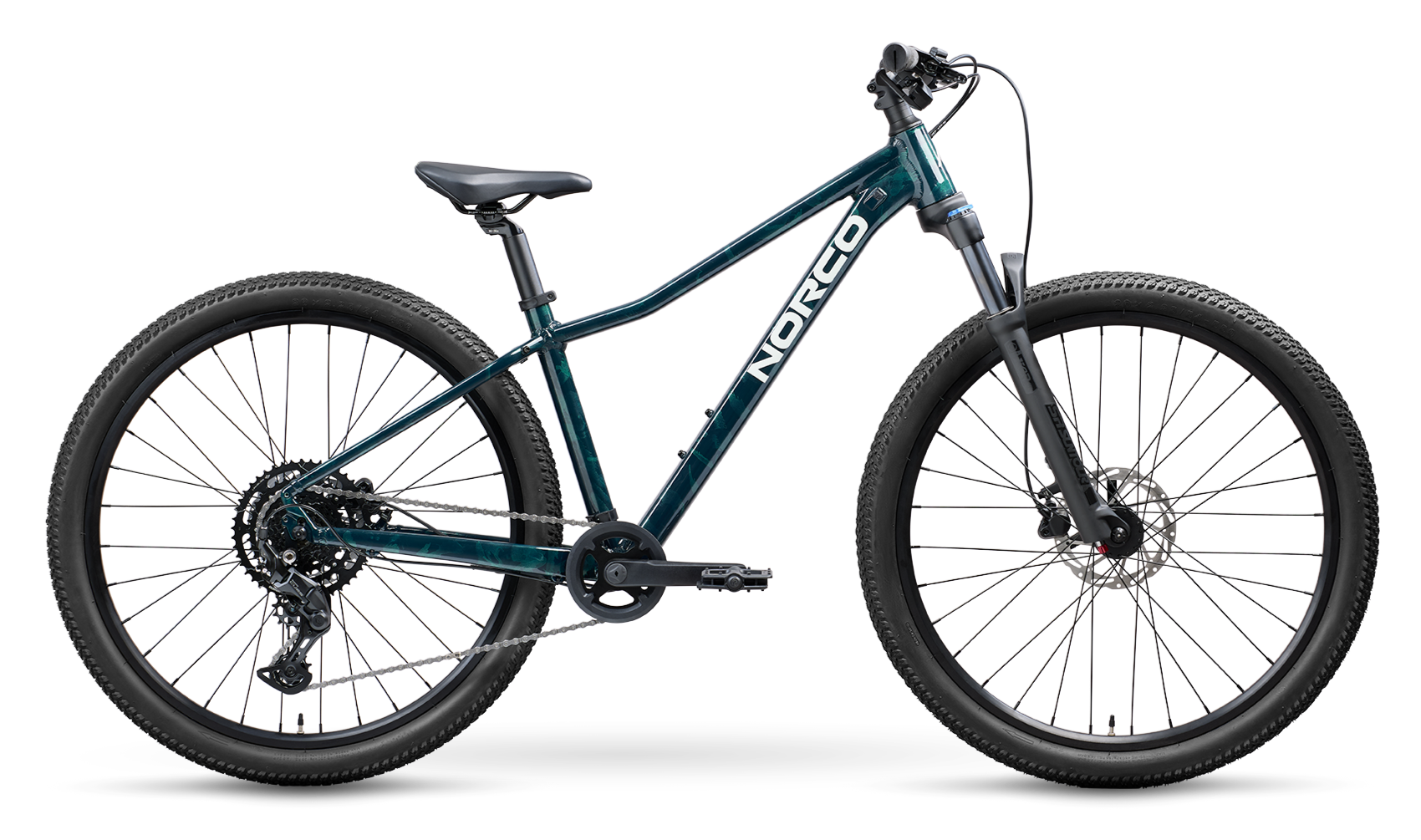

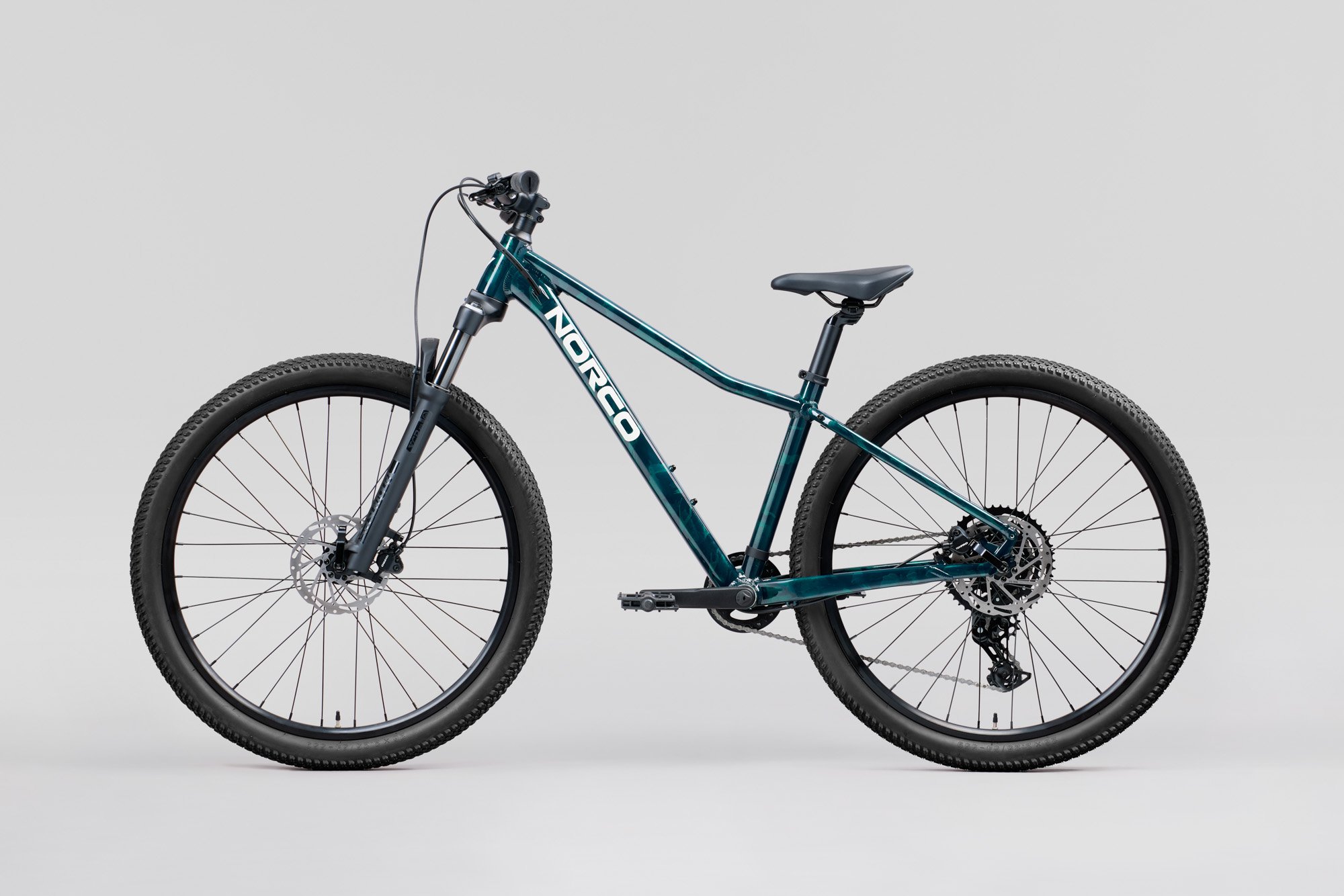

Image 7 of 8

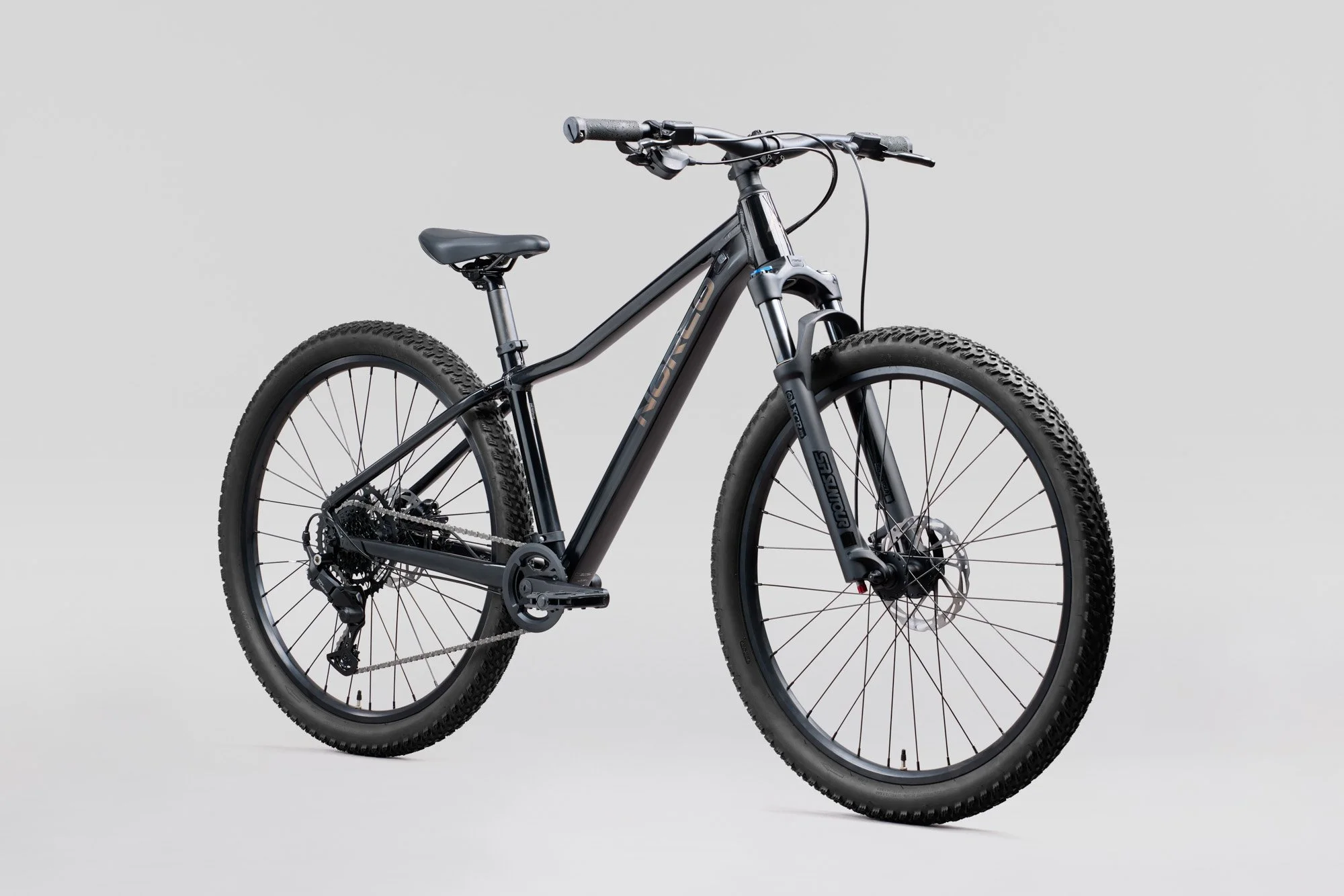

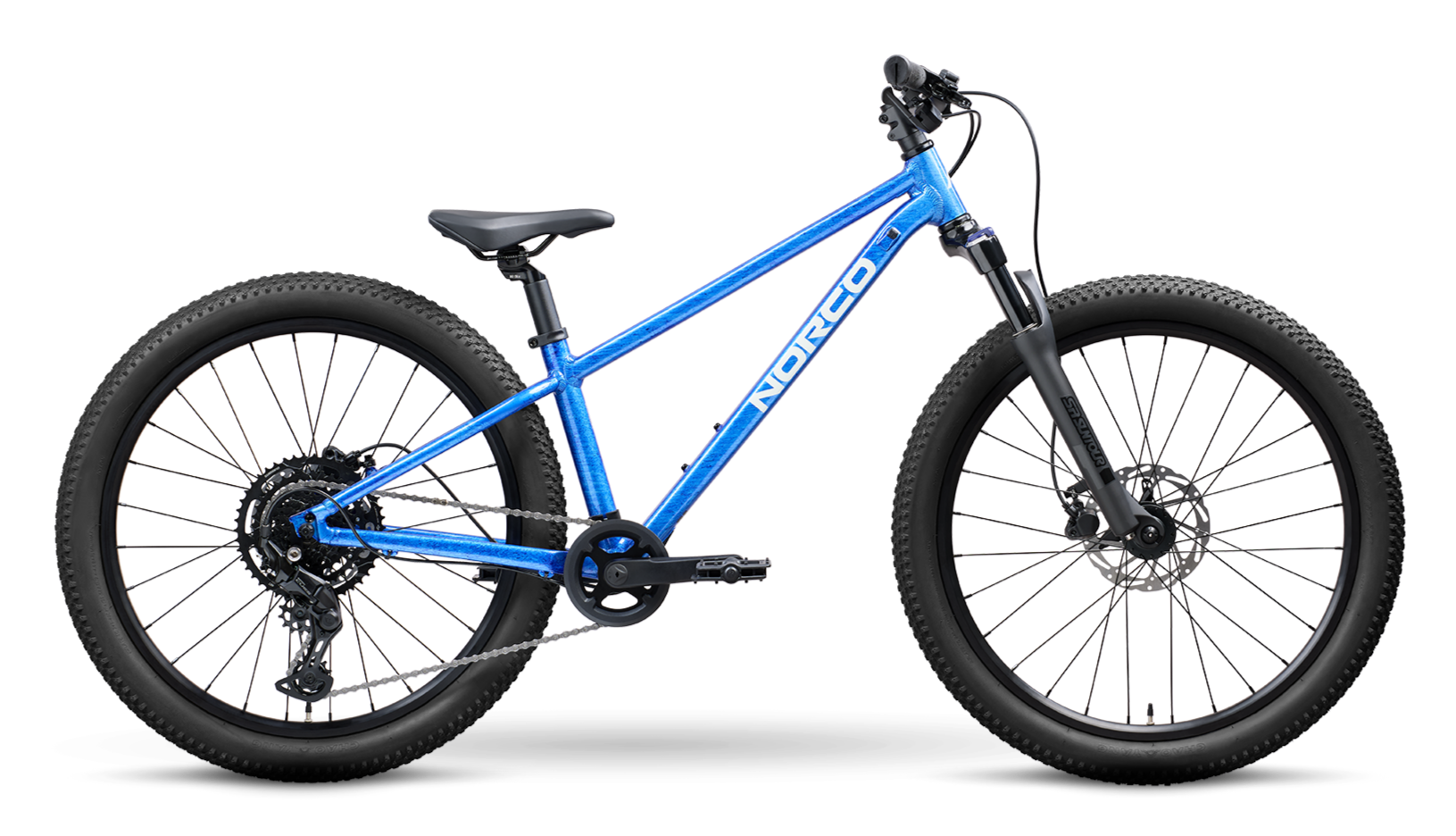

Image 8 of 8
-

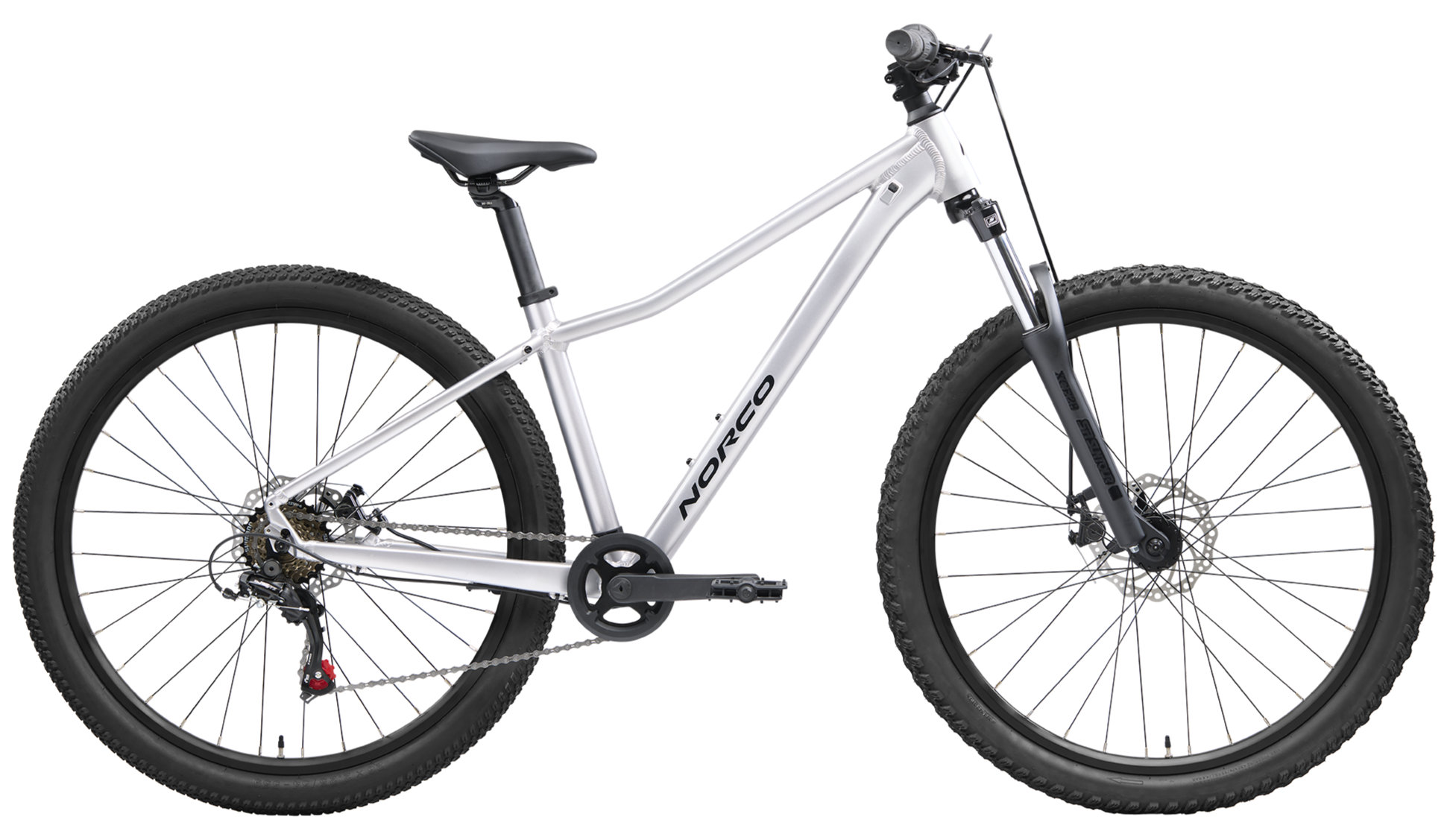

Frameset
Frame Aluminium, 9x135 QR, 26"
Fork SR Suntour XCR Air w/LO 80mm 9x100 QR, Light Tune
Drivetrain
Rear Shifter Shimano Cues SL-U40000-9R
Rear Derailleur Shimano Cues RD-U4000
Crankset Alloy 3pc 152mm, 28T Narrow Wide
Bottom Bracket Sealed bearing, 68mm BSA
Cassette Shimano Cues CS-LG300-9, 11-46T, 9sp
Chain KMC XGlide
Brakes
Front Brake Tektro HD-M3121
Front Brake Rotor Tektro 160mm rotor, 6-bolt
Rear Brake Tektro HD-M3121
Rear Brake Rotor Tektro 160mm rotor, 6-bolt
Brake Levers Tektro HD0M3121, Hydraulic 2-Finger Jr. Levers
Components
Handlebar Alloy Jr. Riser, 720mm, 20mm Rise
Stem Alloy, 31.8mm Clamp, 45mm Length
Seatpost Norco Alloy 31.6mm, 250mm Length
Headset Internal Sealedl Bearing, 1-1/8" to 1.5"
Saddle Norco Jr XC, Steel Rail
Grips Norco Youth, 116mm Length
Pedals Jr. MTB Flat, 9/16"
Seatpost Clamp Norco Alloy Bolted, 34.9mm ID
Wheels
Front Hub Formula DC-1420, 9x100mm QR, 28H, 6-Bolt
Rear Hub Formula DC-1425, 10x135mm QR, HG, 28H, 6-Bolt
Rims Aluminium DW, 28H, 26" MTB
Front Tire CY Trail 26x2.25" ,Wire
Rear Tire CY Trail 26x2.25" ,Wire
Spokes/Nipples Stainless Steel w/Brass Niples - Black
